RFL Electronics GARD 8000 - Figure 10-2. M Inimu M Channel Spacing (FSK)

To Next Page

To Previous Page

Power Line Carrier

GARD 8000 SYS RFL Electronics

April 23, 2015 10-5 973.334.3100

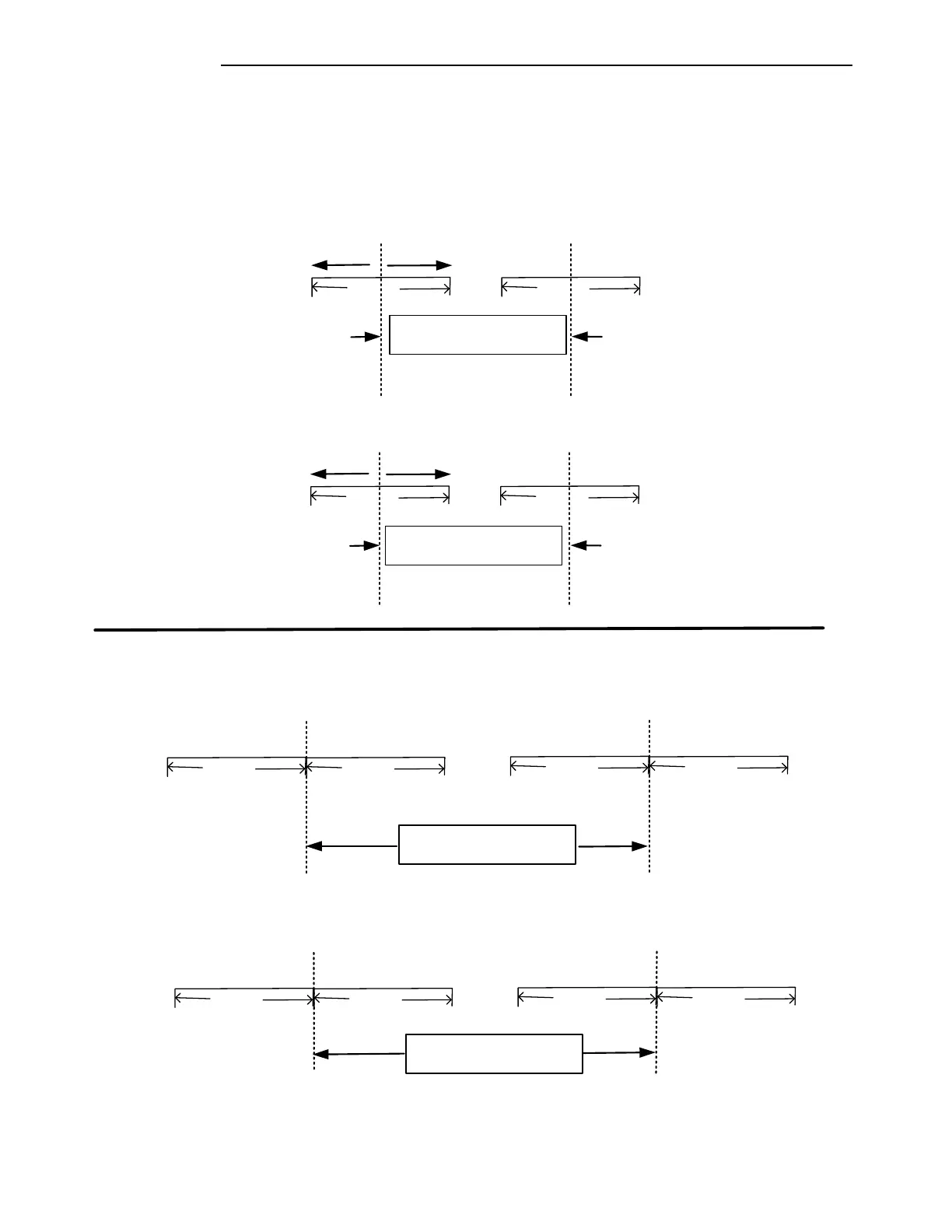

10.2.1 TRIP TRANSPORT DELAY AND CHANNEL SPACING

The example illustration below shows the channel spacing in FSK mode for a 200Hz receive band

width in unidirectional and bidirectional operation.

Unidirectional

200 Hz

TX Center BW

200 Hz

TX Center BW

200 Hz

TX Center BW

200 Hz

TX Center BW

200 Hz

Unidirectional

700 Hz Minimum Channel

Spacing

Shift Up Shift Down

Bidirectional

200 Hz

1000 Hz Minimum Channel

Spacing

TX Center BW

200 Hz

RX Center BW

200 Hz

TX Center BW

200 Hz

RX Center BW

200 Hz

Bidirectional

Shift Up Shift Down

500 Hz Minimum Channel

Spacing

1200 Hz Minimum Channel

Spacing

Min. Spacing for 2F – 200Hz Bandwidth

Min. Spacing for 3F – 200Hz Bandwidth

Figure 10-2. Minimum Channel Spacing (FSK)
