10.8.11 9508 RF CHASSIS INTERNAL CABLING
The interior of the 9508 RF chassis will have four cables installed. The cable part numbers and from-to
connections are shown below.
J1
J4
J2
J1
J4
J5
J2
J9
J3
Rear View of Power
Amp Power Supply
Rear View of Power Amplifier
Rear View of RF Chassis Motherboard

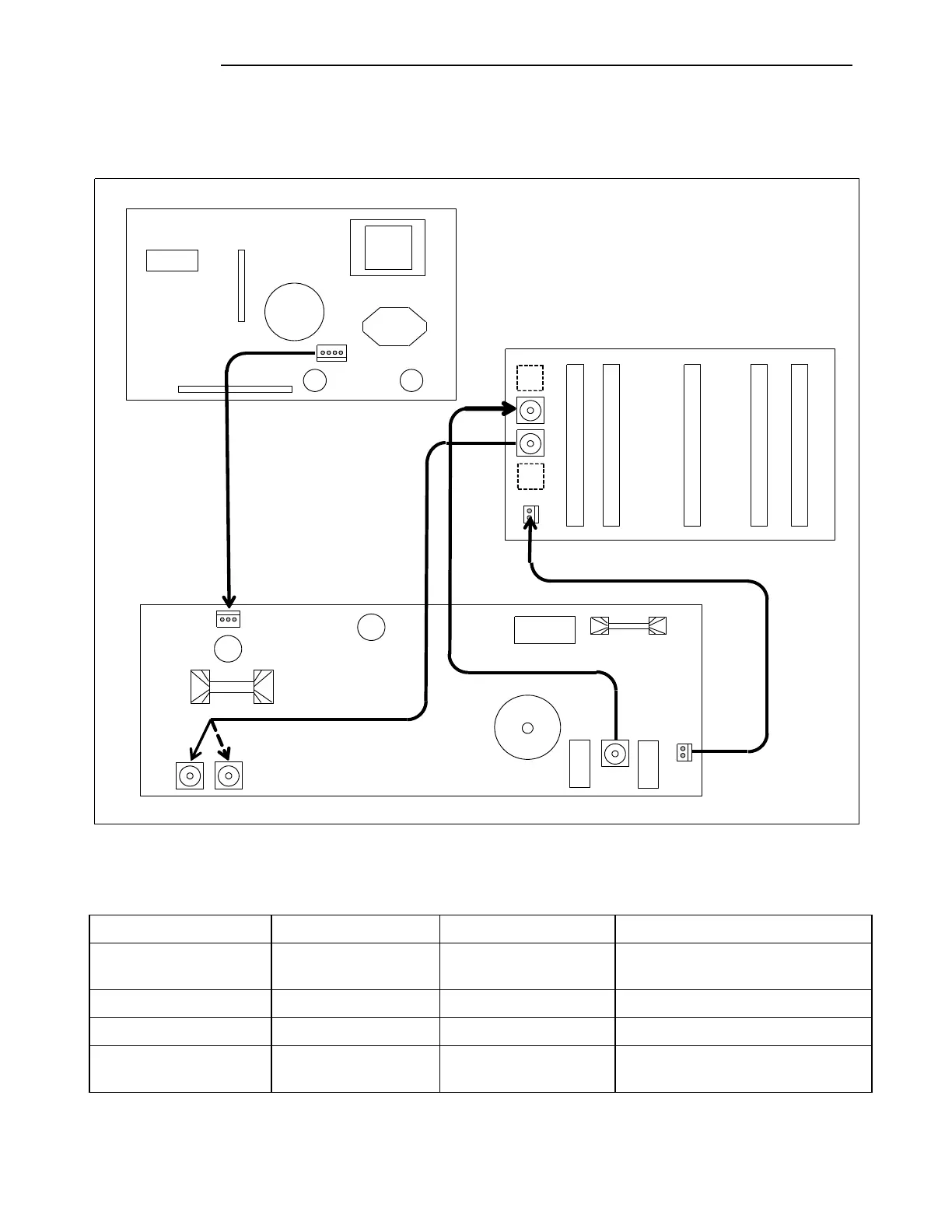

Figure 10-23. Cable Connections in the RF Chassis
Table 10-14. RF Chassis Cables
RFL cable part number
From
To
Function
107806 (2 of 2)
J1 of Power Amp
Power Supply
J1 of Power Amp
3-conductor cable which provides dc
power for Power Amp
107854-17
J2 of Power Amp
J4 of Motherboard
Coax (high level output)
107854-27
J2 of Motherboard
J4 or J5 of Power Amp *
Coax (low level input)
107806 (1 of 2)
J3 of Power Amp
J9 of Motherboard
2-conductoir cable for Amplifier Fail
function
* If the coax is connected to J4, then J5 is unused. If the coax is connected to J5, then J4 is unused.
