GARD Metering Module

GARD 8000 SYS RFL Electronics

April 1, 2007 15-4 973.334.3100

General Settings:

Click on General Settings, the following webpage will appear.

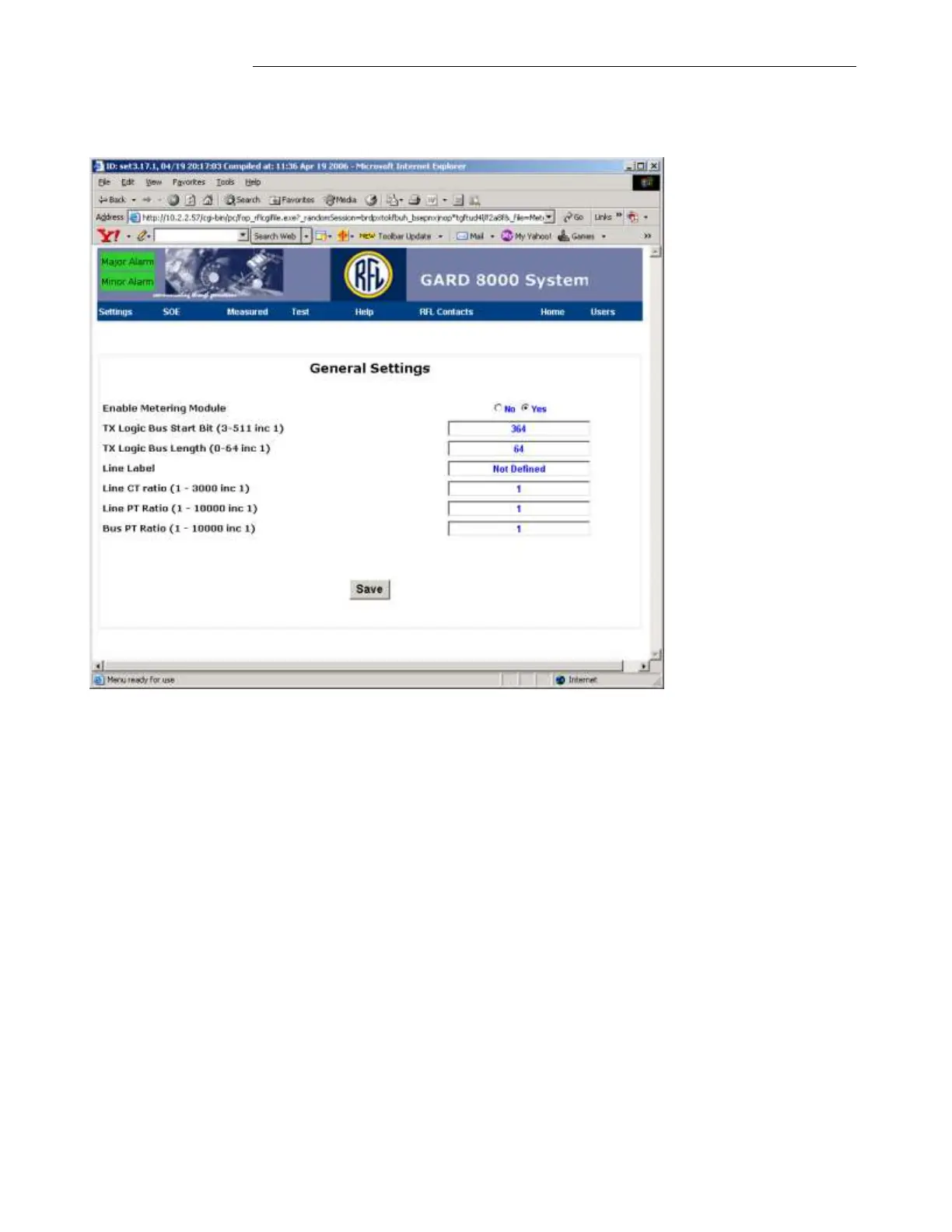

Figure 15-4. Metering Module – General Settings

General Settings Definitions:

Enable Metering Module

This setting will enable or disable the Metering Module. When disabled it is removed from the logic

bus

TX Logic Bus Start Bit (3 - 511 inc 1)

This should be set to the correct number determined by the system logic design

TX Logic Bus Length (0 - 64 inc 1)

This should be set to 64

Line Label

This is a user defined value that will be displayed on status web pages
