Chassis Configuration Settings

GARD 8000 SYS RFL Electronics

April 1, 2012 7-6 973.334.3100

7.2.3 OUTPUT MODULE SETTINGS

From the toolbar select Settings, Chassis Configuration. A web page similar to the one shown below

will appear, showing the installed modules and their current status.

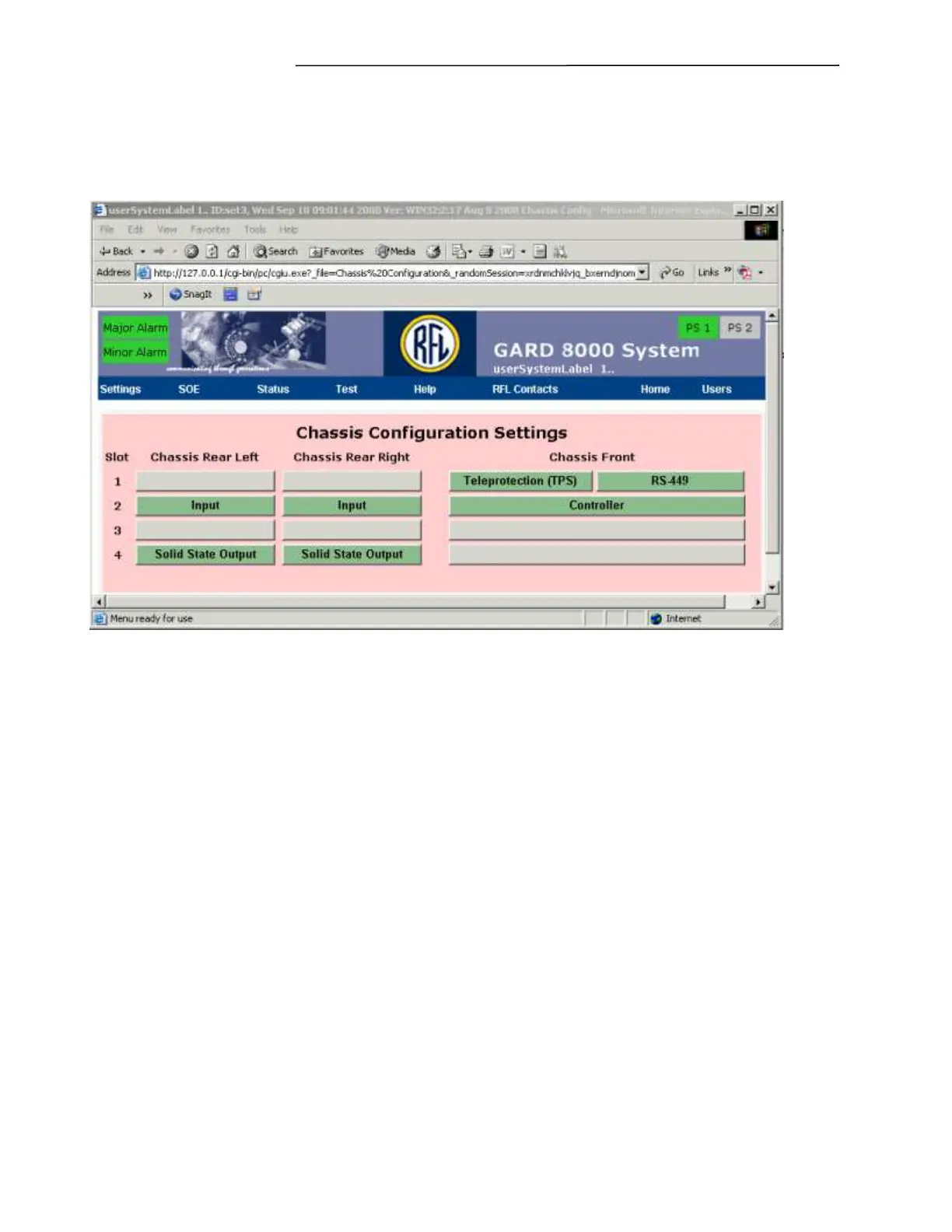

Figure 7-4. Chassis Configuration Settings web page
