Chassis Configuration Settings

GARD 8000 SYS RFL Electronics

April 1, 2012 7-52 973.334.3100

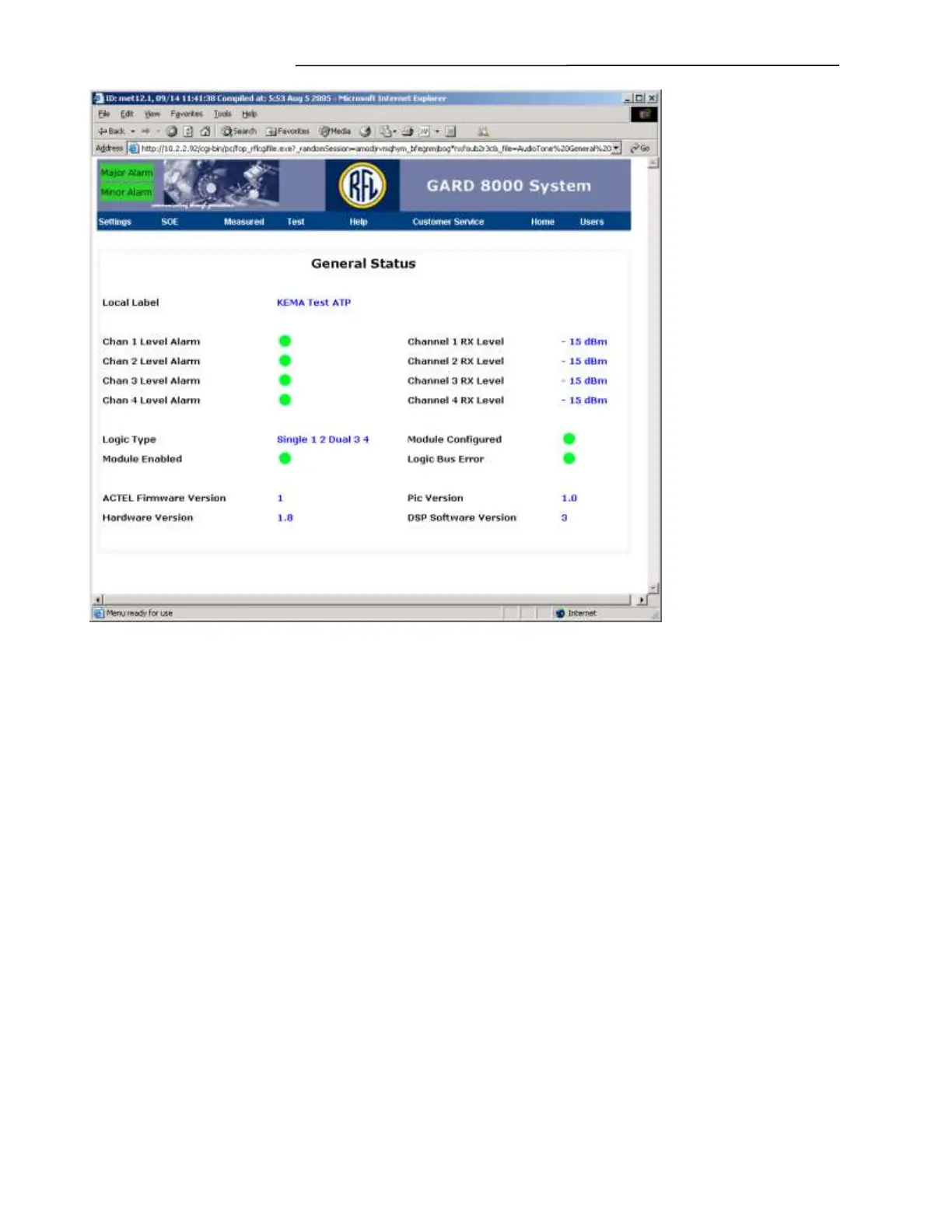

Figure 7-32. Audio Tone, General Status Web page

General Status Definitions for Column 1

Local Label

The assigned Local Label.

Chan 1 through Chan 4 Level Alarm

The channel 1 - 4 level alarm indicator will be GREEN if the received level is higher than the set Rx

level limit, and will be RED if the value is equal to or below the set limit. For example, if we expect a

level of -15dBm and the Rx level alarm is set to -30dBm, the red indicator will be lit if the Rx level is

at -30dBm or less, otherwise the indicator will be green.

Logic Type

There are four logic types as follows:

Single 1, 2, 3, 4

Single 1, 2, Dual 3, 4

Dual 1, 2, Dual 3, 4

Simple

Module Enable

The indicator will be GREEN if the module is enabled, and RED if the module is disabled.
