Applications
GARD 8000 SYS RFL Electronics
February 14, 2011 2-2 973.334.3100
2.2.1 BUILT IN WEB SERVER
The GARD 8000 System has a built-in web server that contains all the settings necessary to configure
and use the system. Communication to the web browser is done through a laptop PC. The GARD
8000 System will also support an optional Touch Screen Display (TSD) which is fixed to the GARD
Front Panel. Help screens are provided in the browser to assist the user in selecting the appropriate
settings. Section 5 of this manual gives detailed procedures for setting up communications to the
GARD via a PC. Section 7 gives detailed information on configuring a GARD Chassis through the
browser interface.
Installed Modules
with status
Power Supply with status
displayed on every page
Pull down menus for
chassis configuration
Alarm status as defined in
the chassis configuration
displayed on every page

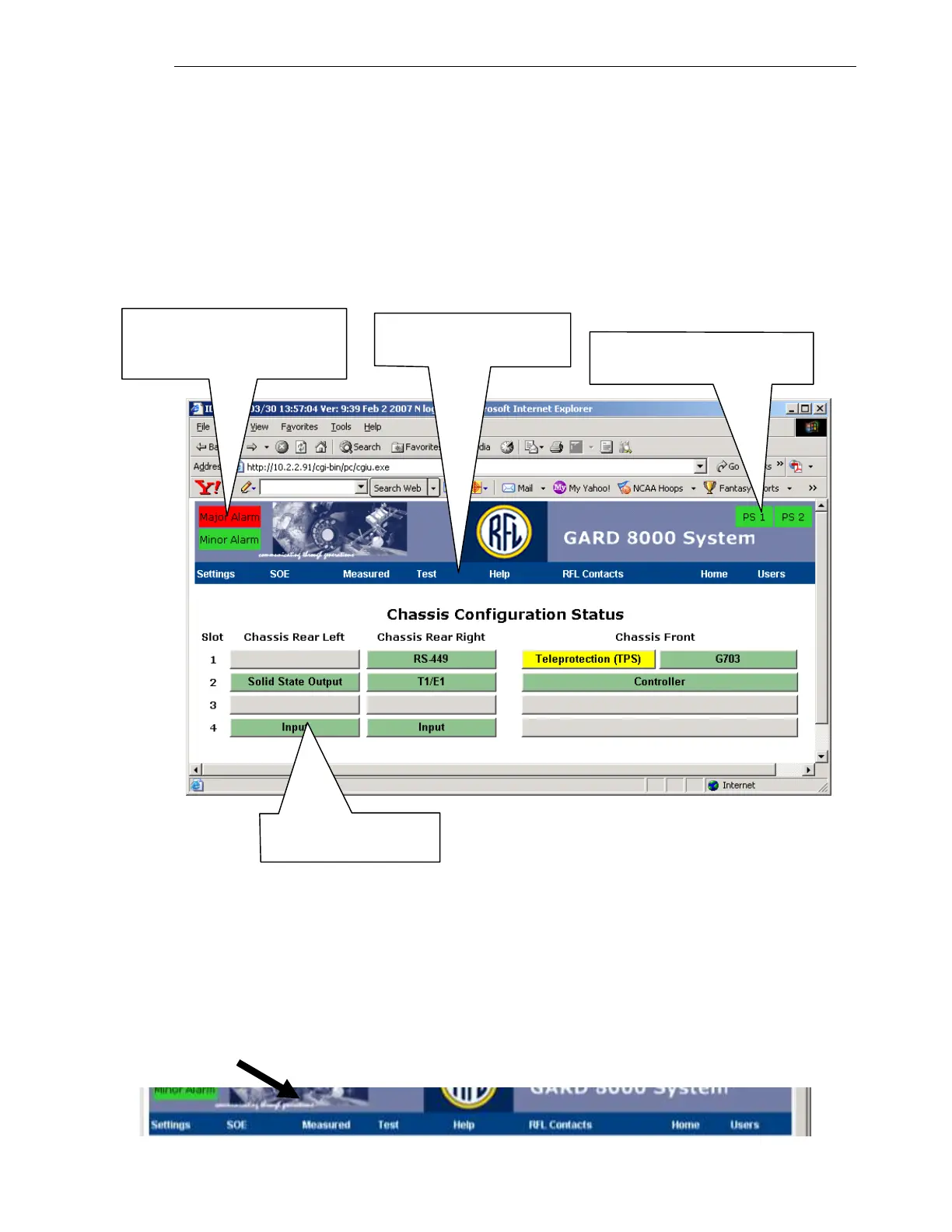

Figure 2-1. Web Browser Interface Overview
 The background color of the web page will indicate what type of page you are on:
Light Green
Status Page
Light Red
Configuration Settings Page
Light Blue
Test Page
 With the current Image Software release “Measured” in the pull-down menu has been replaced
with “Status.”
