RFL Electronics GARD 8000 - Figure 7-12. Teleprotection Channel Configuration at Slot #1 Front Web Page

To Next Page

To Previous Page

Chassis Configuration Settings

GARD 8000 SYS RFL Electronics

April 1, 2012 7-20 973.334.3100

TX Range

In the box provided, enter the starting bit number for the transmitters for all TPS channels

RX Range

In the box provided, enter the starting bit number for the receivers for all TPS channels.

As an example, the figure below shows a digital teleprotection module configured for one 8-Function

channel with the transmitters start bit set at 100 and the receivers start bit set at 120.

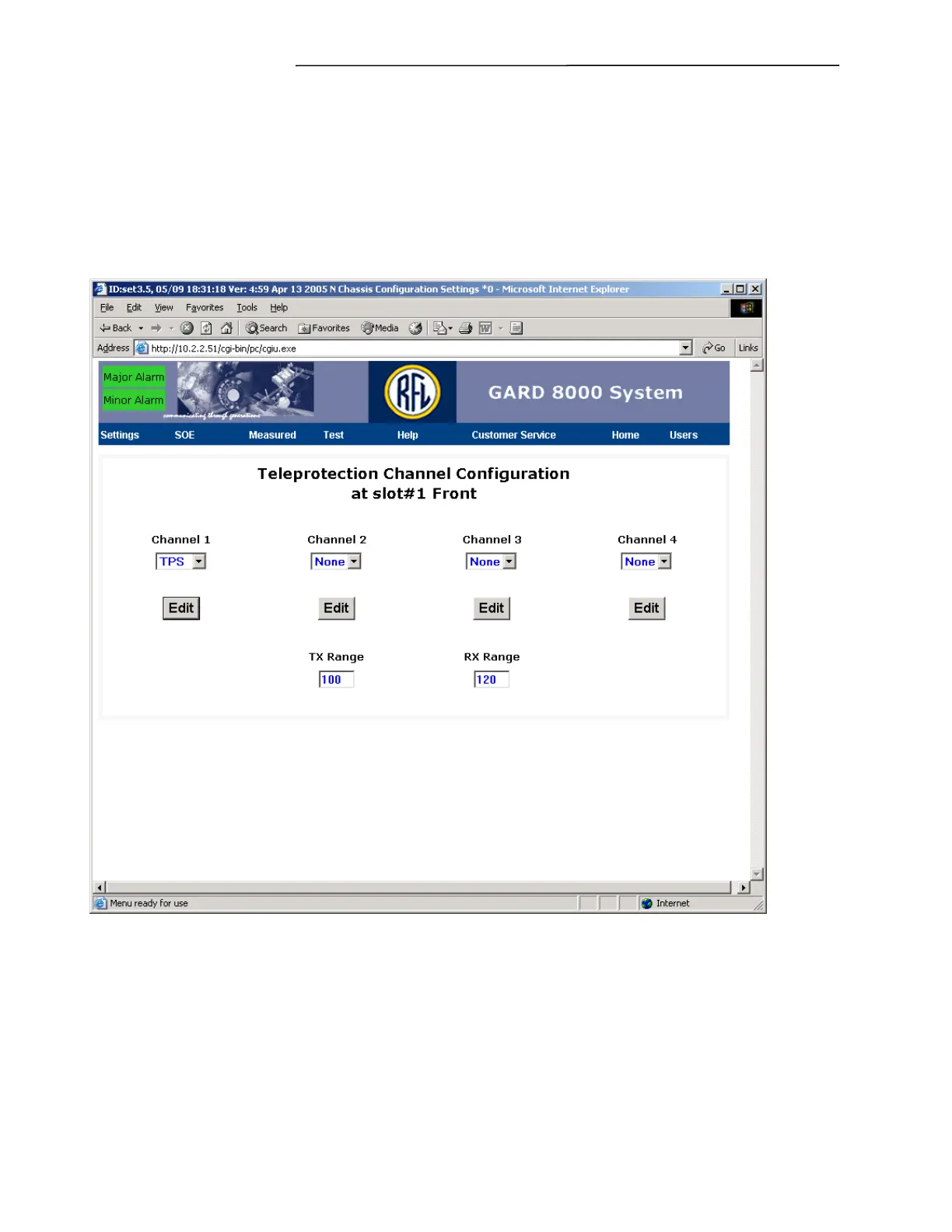

Figure 7-12. Teleprotection Channel Configuration at slot #1 Front web page

Click on the Edit button for the TPS channel you wish to configure. A screen similar to the one shown

on the following page will appear.
