13.4 CURRENT DIFFERENTIAL RELAY STATUS

From the Home page select Current Differential; a webpage similar to the one shown below will

appear.

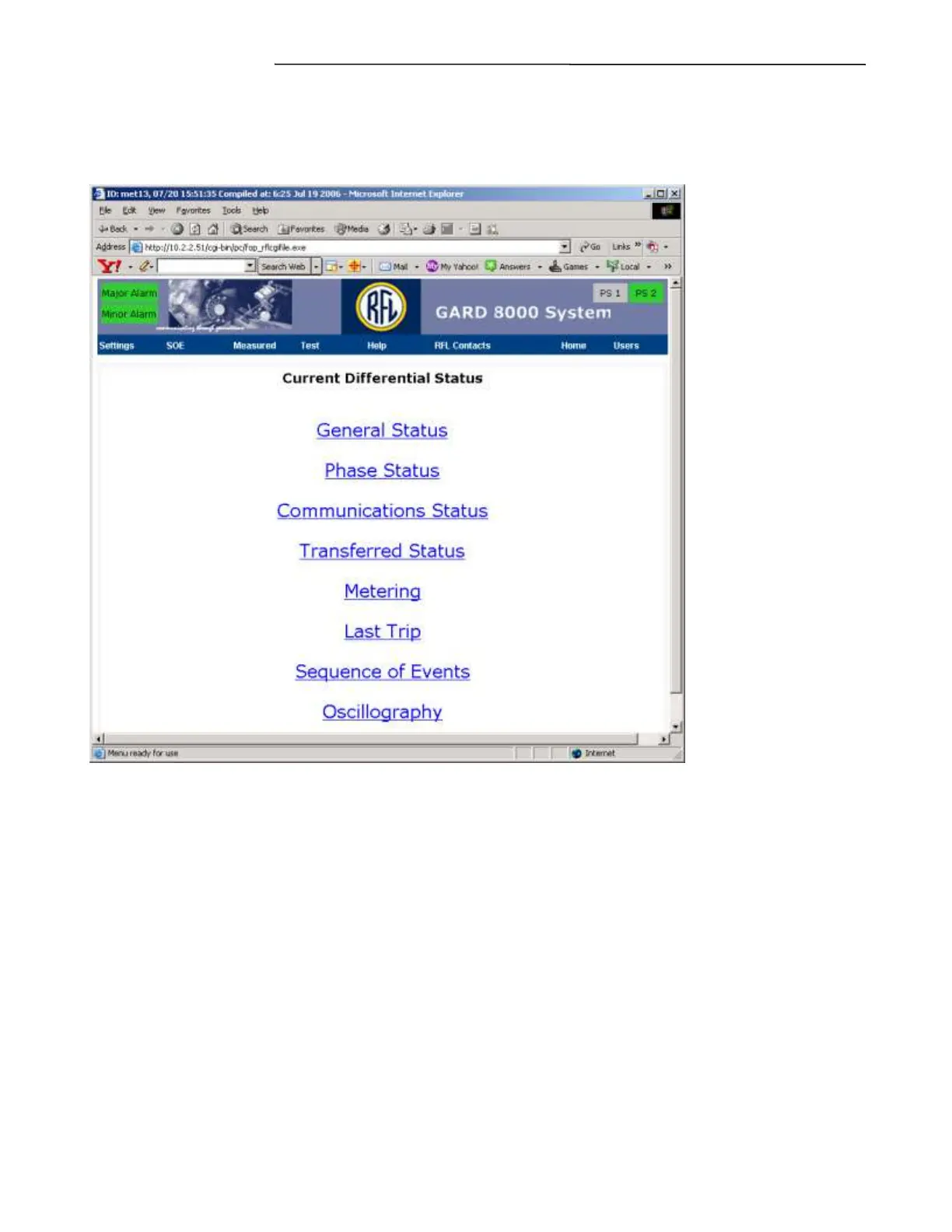

Figure 13-21. Current Differential Relay Status
