GARD DNP Configuration and SNMP Trap Agent

GARD 8000 SYS RFL Electronics

April 23, 2015 16-7 973.334.3100

Note: The example that follows is for the Power Line Carrier Module, other modules supported by

DNP will have a similar set up.

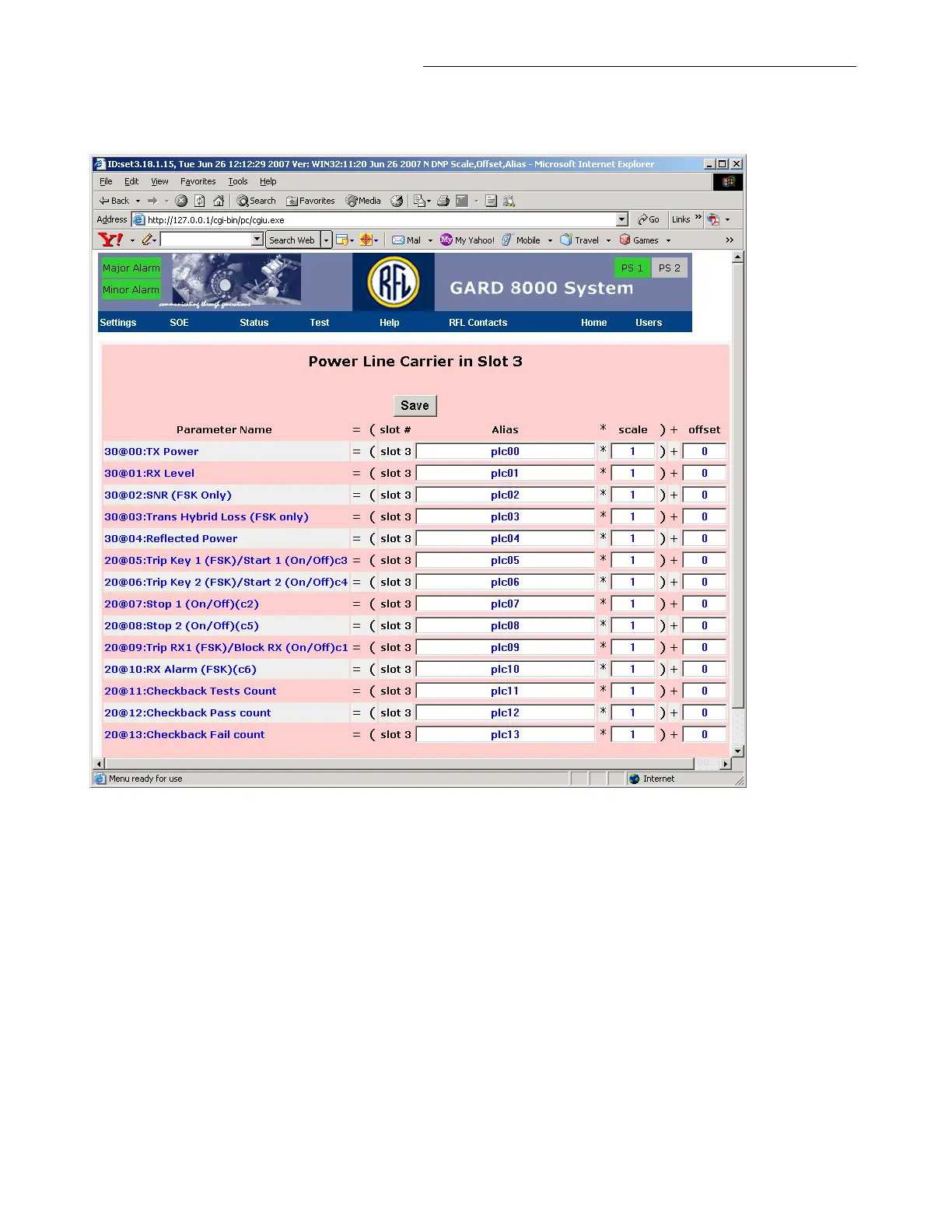

Figure 16-8. Customer Alias Entry (typical)

The web page shown above will allow the user to set aliases and parameters for the analog values

available from the PLC module. Aliases are user entered names that may be easier to work with in the

point list. The other settings allow scaling and offsetting of the analog values prior to DNP

transmission.

Note that the counters represented here should always have their scale set to 1 and their offset to 0.

Definitions:

Parameter Name

The corresponding input on the target card.

Alias

A user entered alias. This alias is shown on the “Point List” web page.
