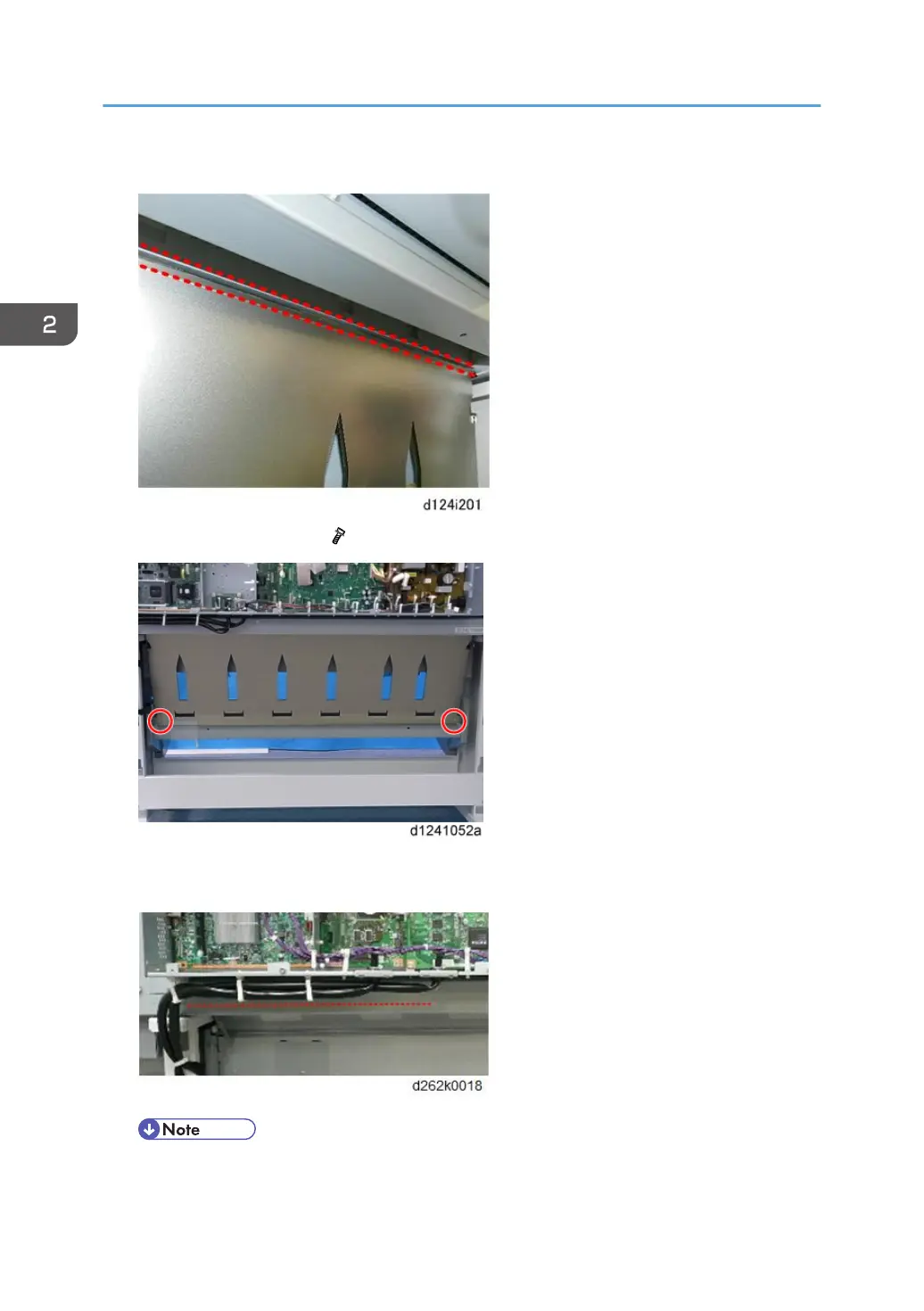

14. Check each corner of the plate to be sure that each peg is tight in its cut-out.
15. Fasten the plate (tapping x2 - M3x6).
16. Make sure that the clamps are closed and that there is absolutely no slack in the
harnesses.
• The harnesses must be flat against the bottom of the PCB box to prevent them from interfering
with paper in the bypass feed path.
