Ricoh MP CW2201

To Next Page

To Previous Page

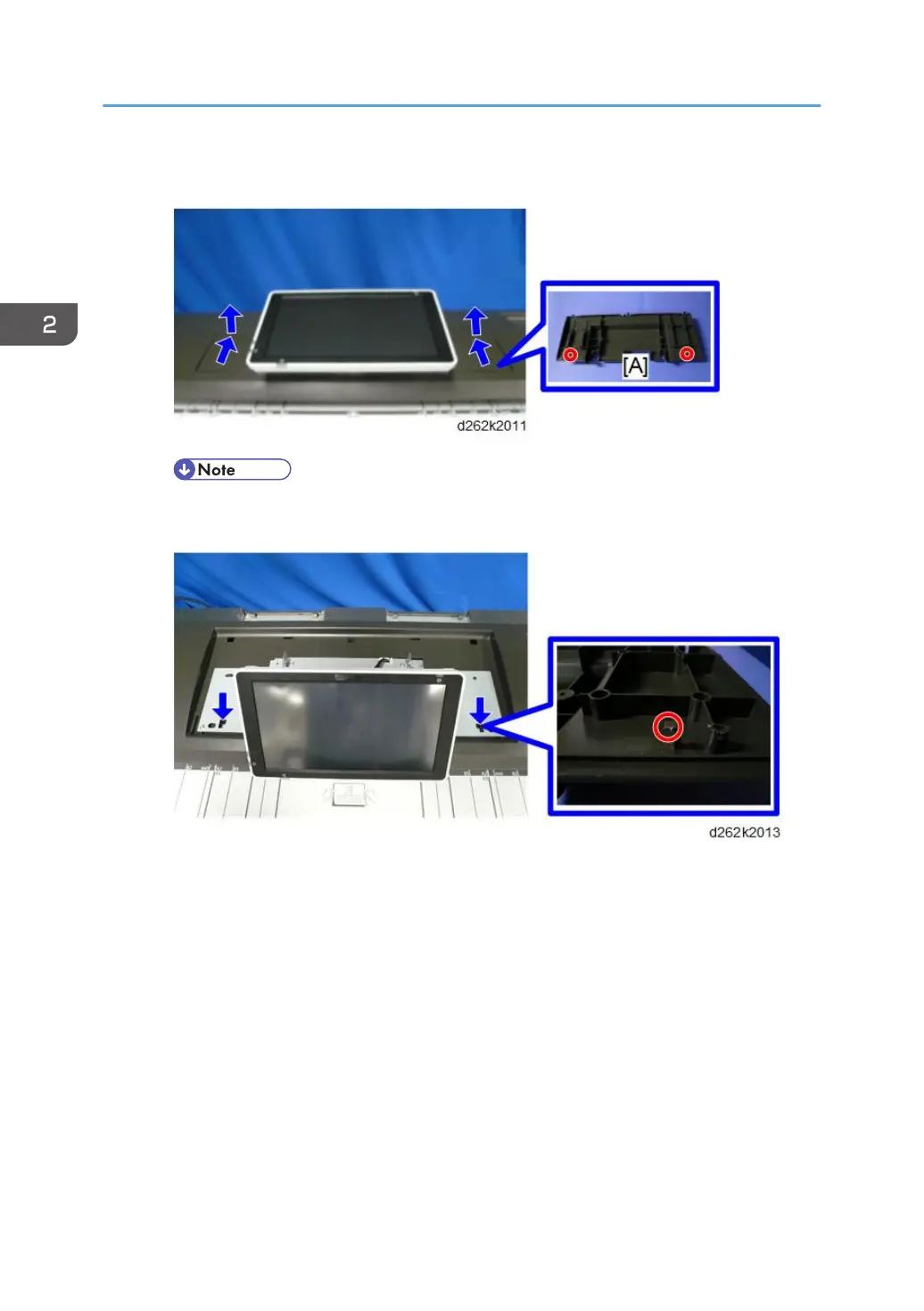

3. Push the operation cover in the direction indicated by the arrows and remove it.

• Move the hooks on the rear of the operation cover [A] to the wide end of the mounting

holes, and pull up the cover to remove.

2. Installation

170

Main Page

Symbols and Trademarks7
Symbols7
Trademarks8
Table of Contents9
