3. Remove the original width sensor cover plate ( x2) (p.285 ) .
4. Clean each sensor with the blower brush.
Original Feed Roller
• Alcohol, damp cloth, dry cloth
1. Remove the registration sensor cover plate ( x2) (p.289).

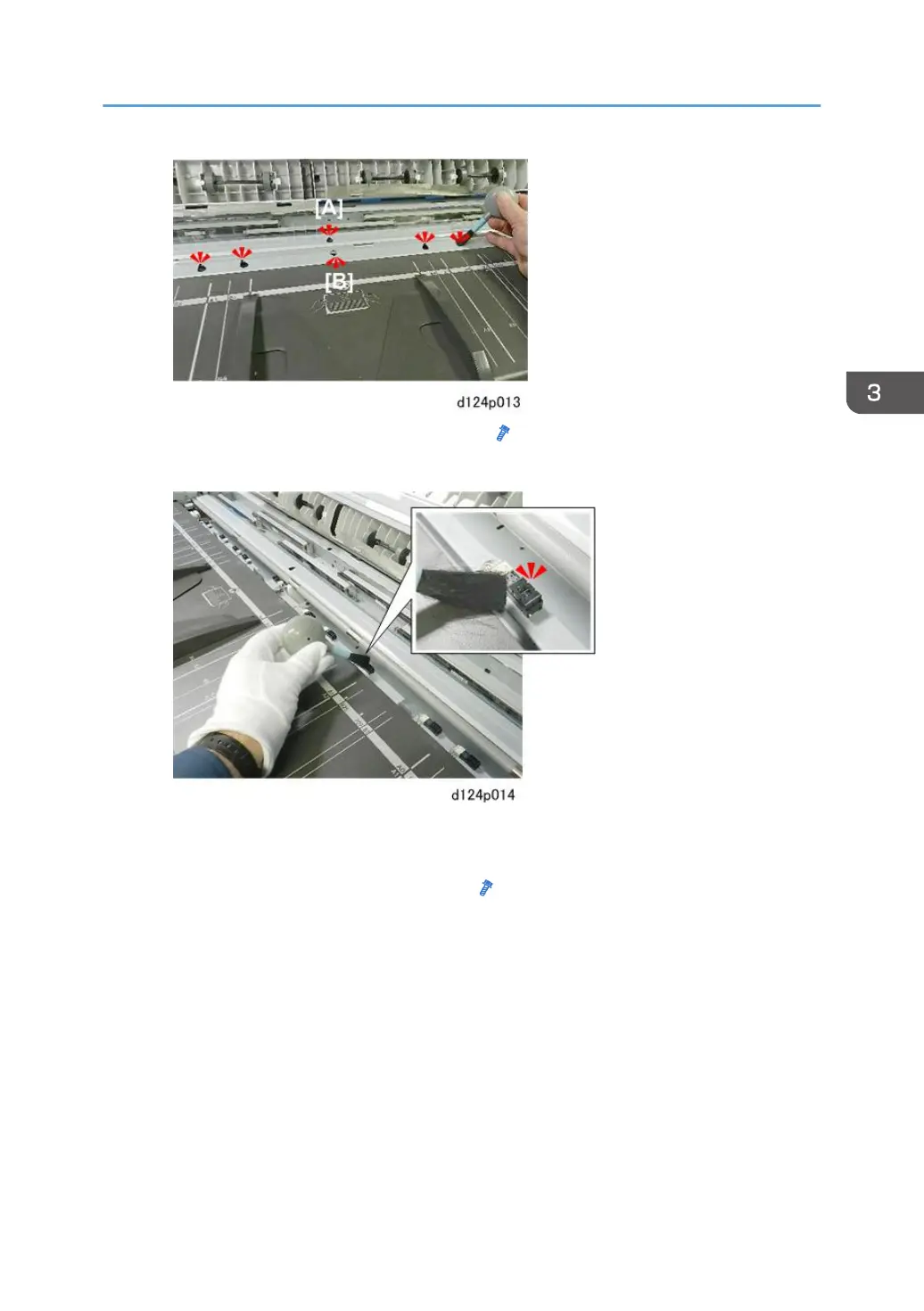

2. Wipe the original feed roller [B] while turning the gear [A].
PM Cleaning Points
193
