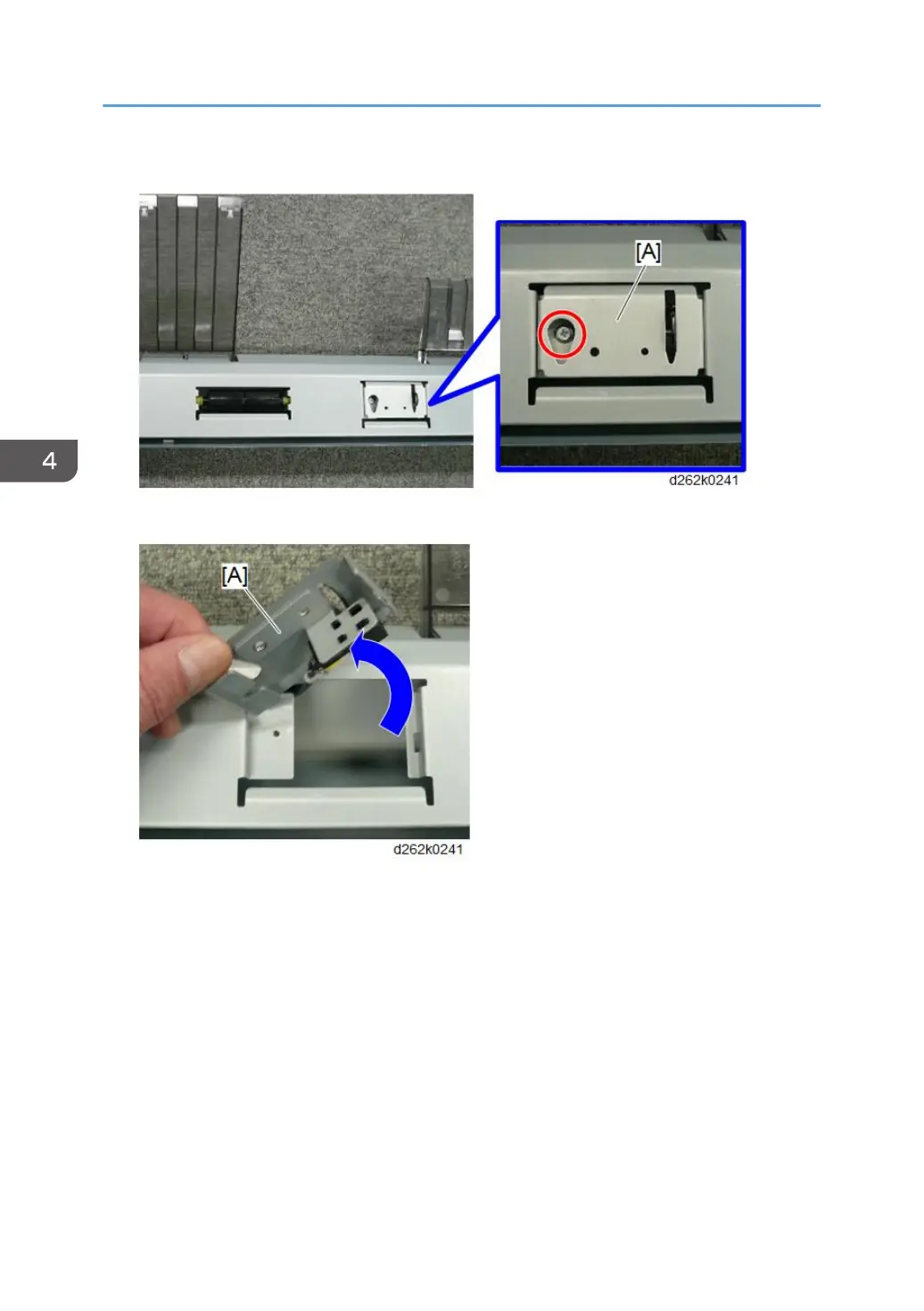

6. Remove the screws of the sensor bracket [A].

7. Pull out the sensor bracket [A].

4. Replacement and Adjustment

354
