Ricoh MP CW2201 Service Manual

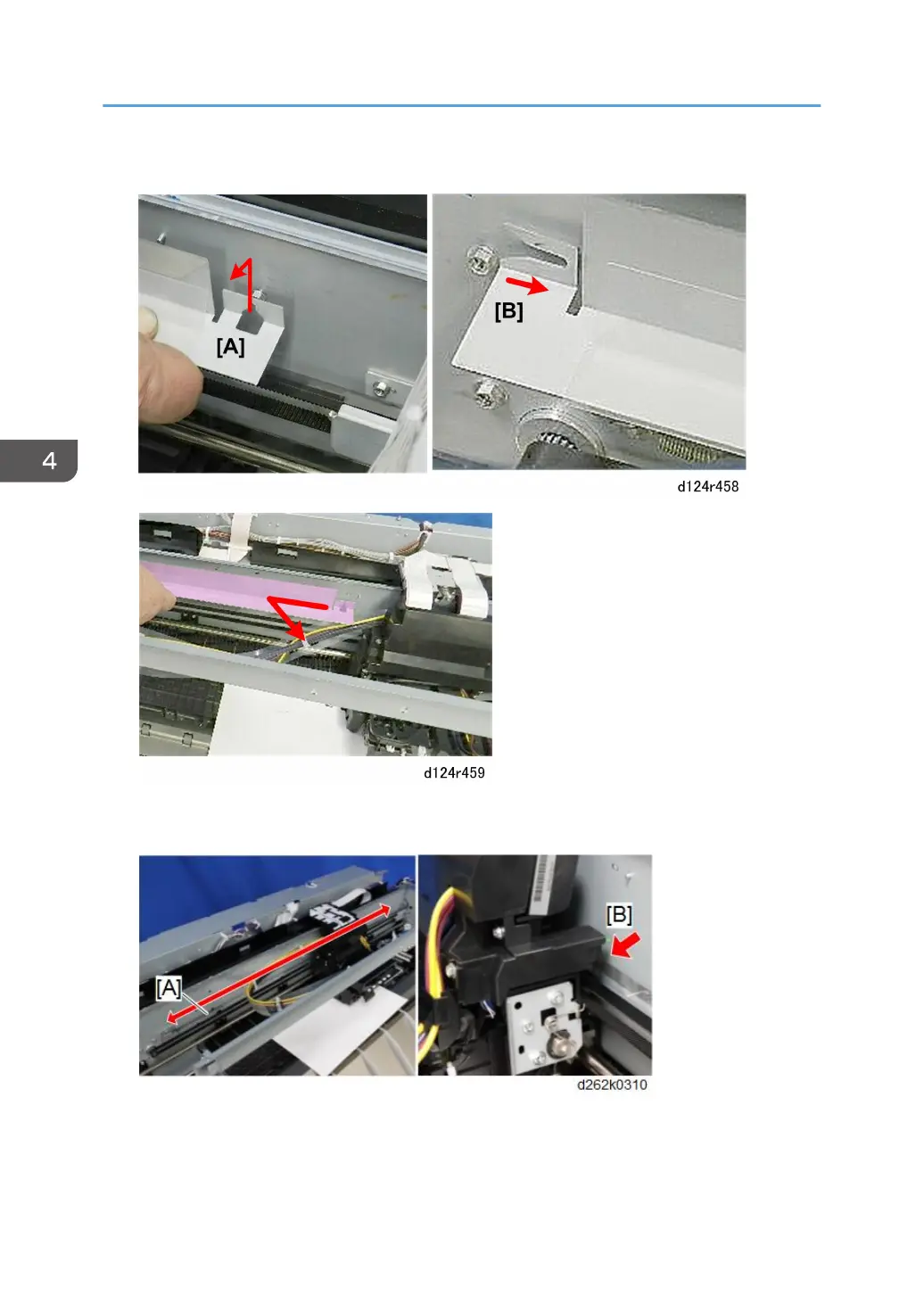

3. Remove the rail from the screws [A] on the right of the rail and [B] on the left.
4. The horizontal encoder sheet [A] covers the main unit from left to right. The upper end of
the horizontal encoder sheet [B] is caught by the cutout of the horizontal encoder sensor.
4. Replacement and Adjustment
386

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
