Ricoh MP CW2201 Service Manual

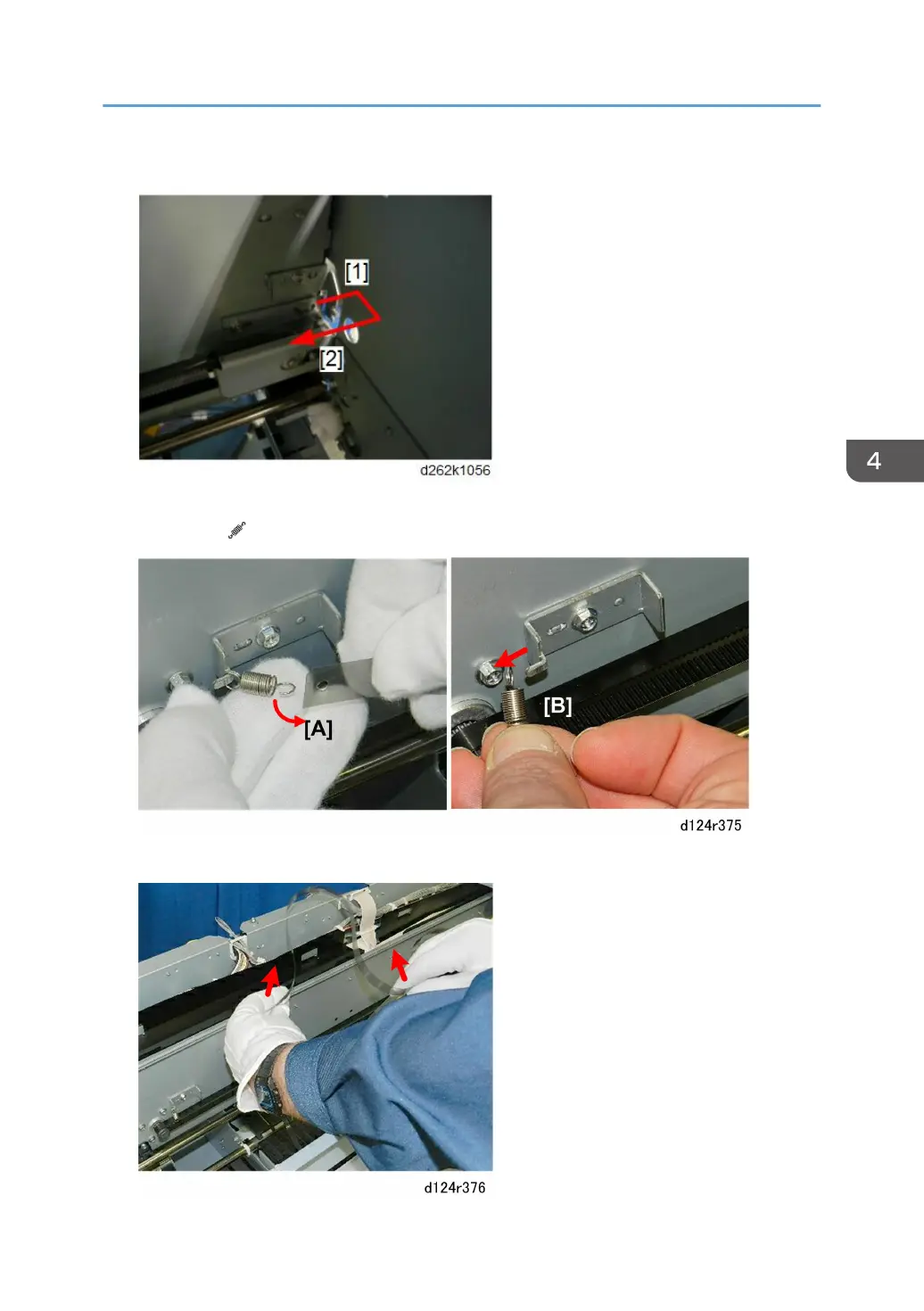

5. Pull the right end of the horizontal encoder sheet [1] to the right and unhook the sheet [2].
6. Remove the left end of the horizontal encoder sheet from the spring [A] and remove the
spring [B]. ( x1)
7. Take out the horizontal encoder sheet.
Main Scan
387

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
