Ricoh MP CW2201

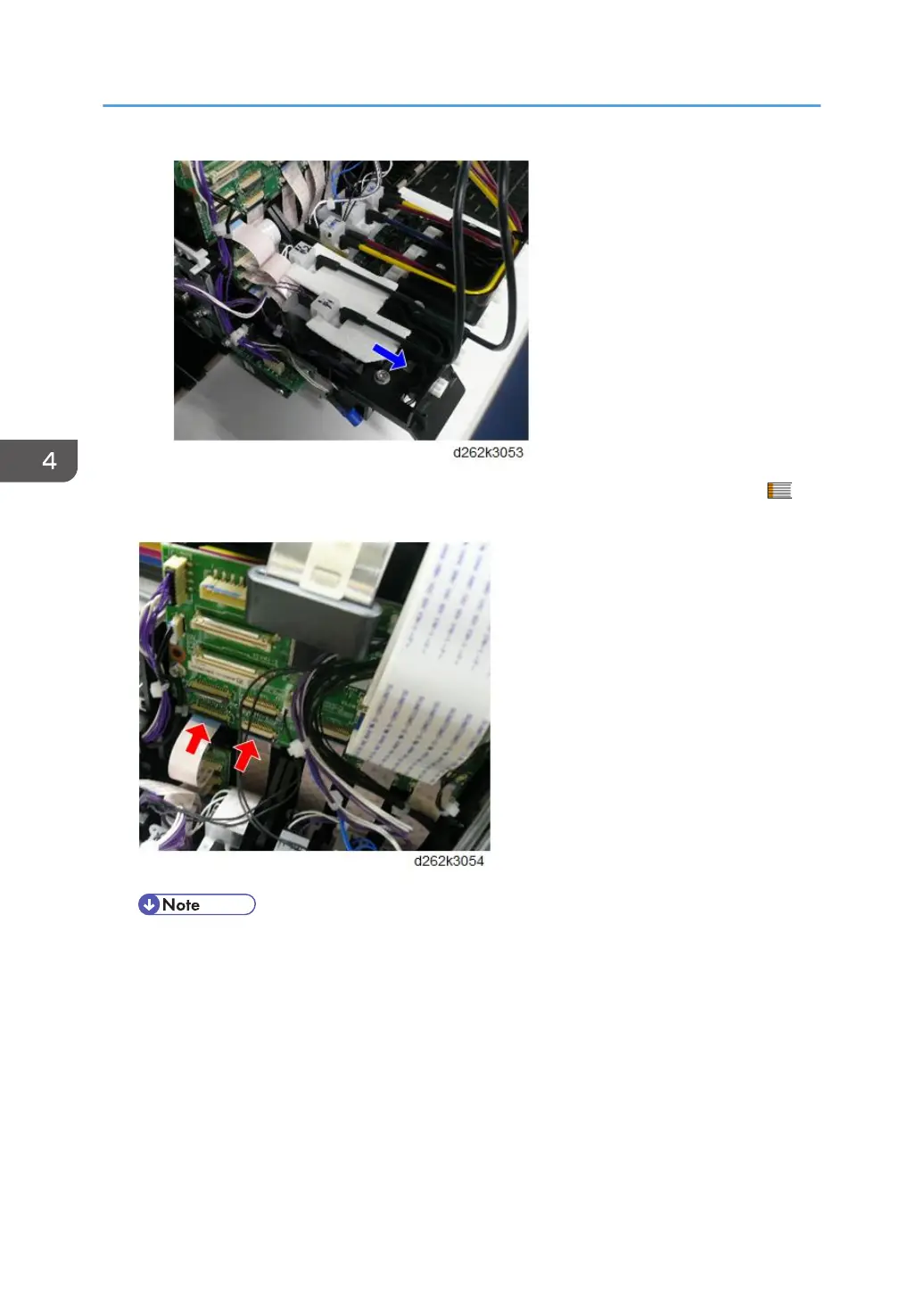

9. Connect the FFCs (back side) to the lower connectors at the lower part of the HRB. (
x2)
• To connect the FFCs, be sure you understand the directions of the locks of the connectors.
• To connect the FFCs [A], push in the lock.
• To connect the FFCs [B], push down the lock.
4. Replacement and Adjustment
440
