Ricoh MP CW2201 Service Manual

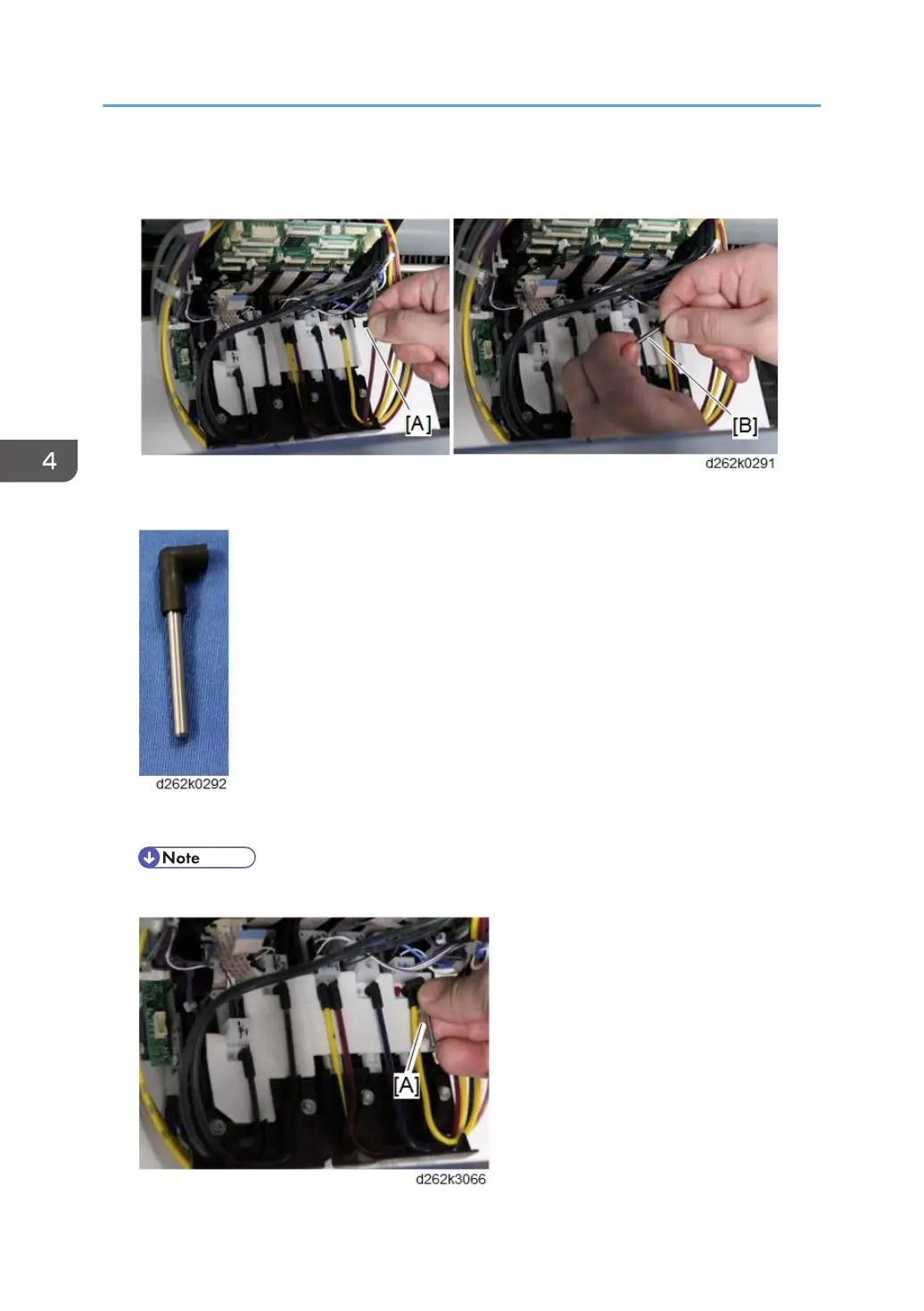

11. Remove the ink tube (M2) [A] from the ink supply port of the print head, and attach the
plug to the ink tube joint (M2) [B].
12. Take five plugs (capped) of the accessories of the new print head unit.
13. Attach the plug (capped) [A] to the ink supply port of the print head to be removed.
• The cap prevents the ink leakage from the ink supply port.
4. Replacement and Adjustment
452
