Ricoh MP CW2201 Service Manual

14. Remove the ink tubes (Y2, C, M1, Y1) from the ink supply ports of the print heads and
attach the plugs to the joints and the plugs (capped) to the ink supply ports of the
removed ink tubes.

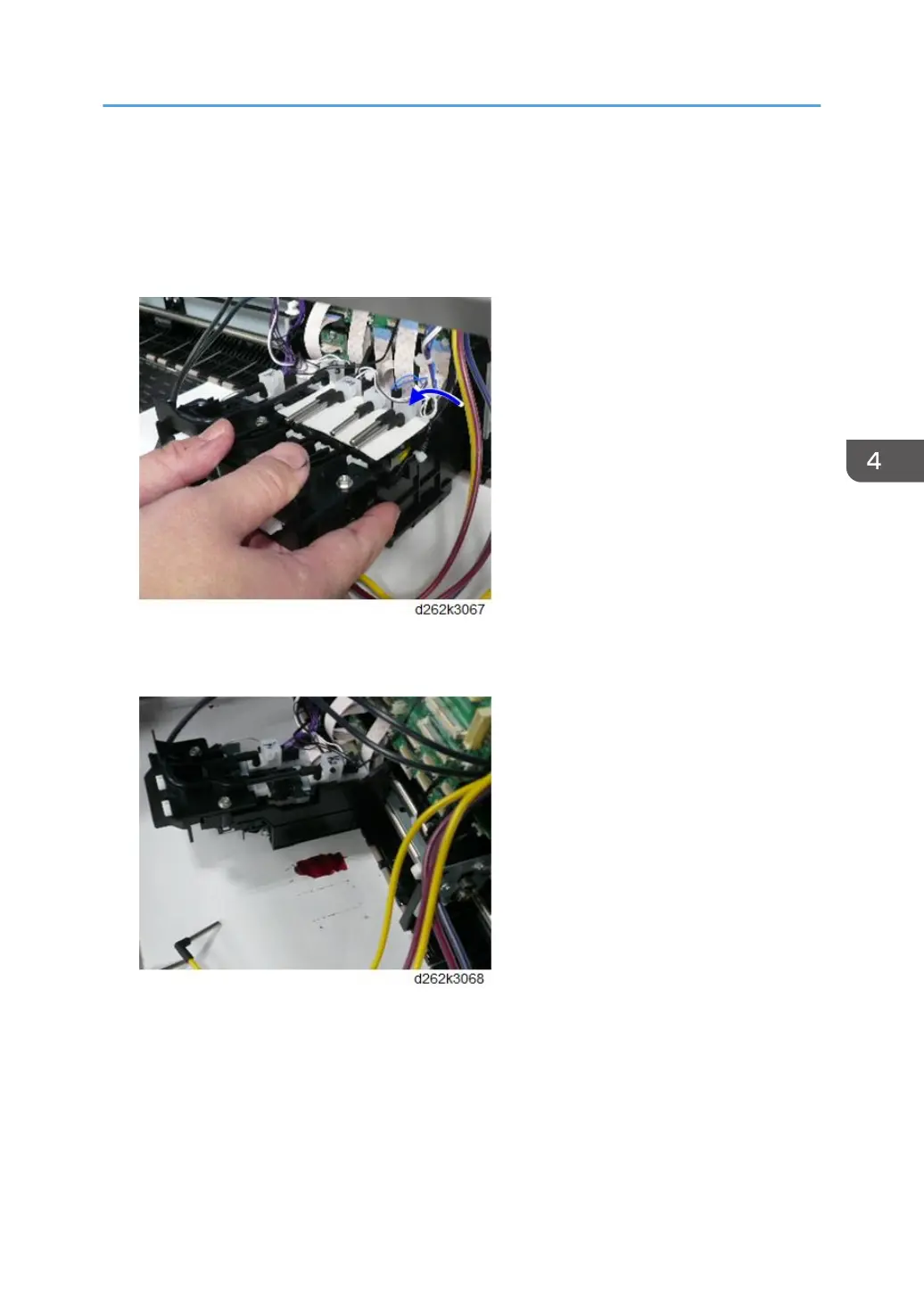

15. Slightly pull up the color print head to be removed to release it from the guide lock
backward. Then place it on several sheets of paper.
16. Check that the ink does not spill on the paper beneath the removed print head. If it spills,
change the paper.
Carriage Unit
453
