Ricoh MP CW2201 Service Manual

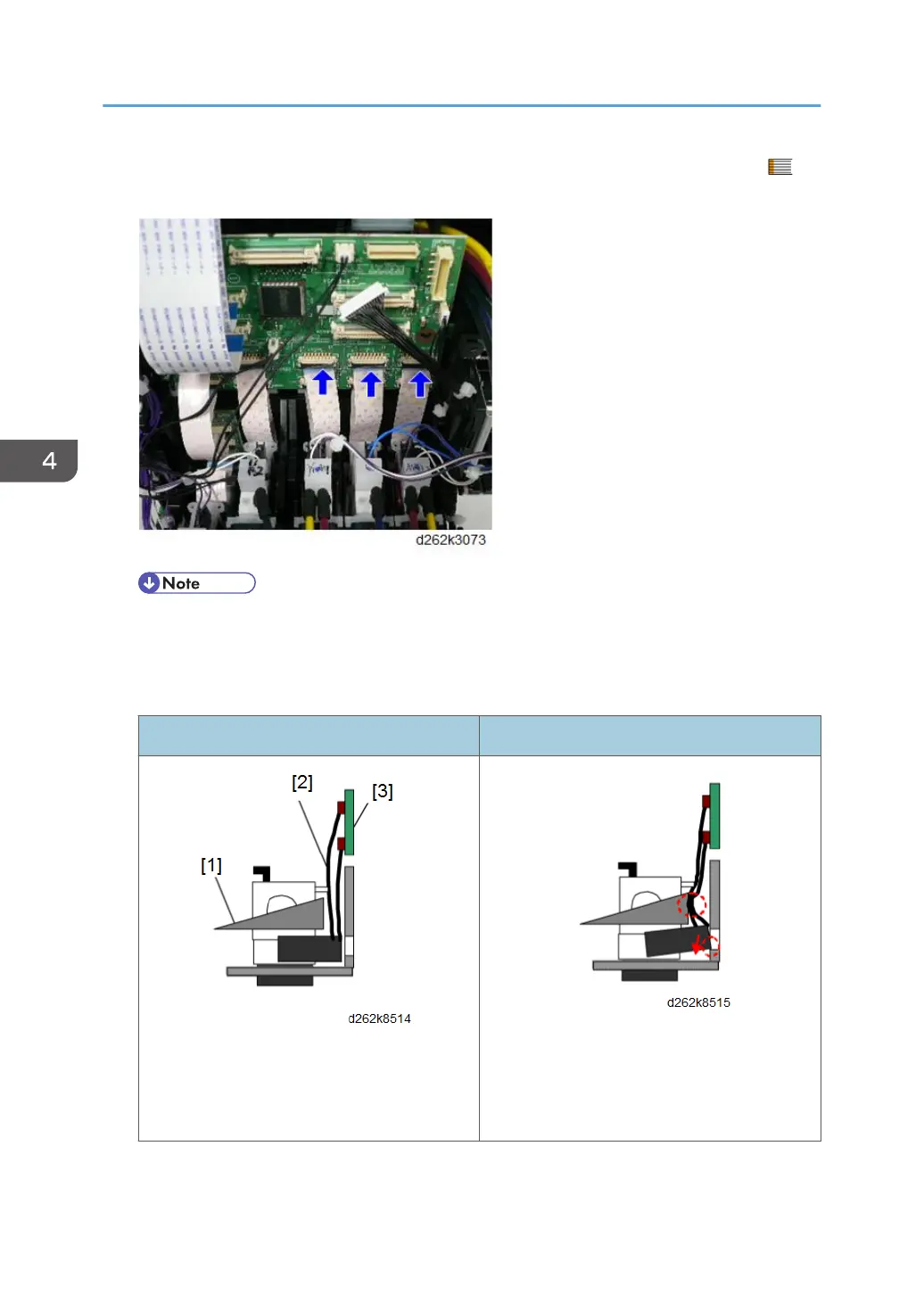

9. Connect the FFCs (front side) to the upper connectors at the lower part of the HRB. (
x3)
• If the FFC is pulled after connecting to the HRB, it may be hooked into the OCFS actuator.
Then the FFC becomes longer than the required length to the connector and the deflected part
may push the OCFS actuator. In this case, release the FFC and release the hooked part. Then
connect it to the HRB again.
Not hooked Hooked
1: Filler
2: FFC
3: HRB
4. Replacement and Adjustment
458

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
