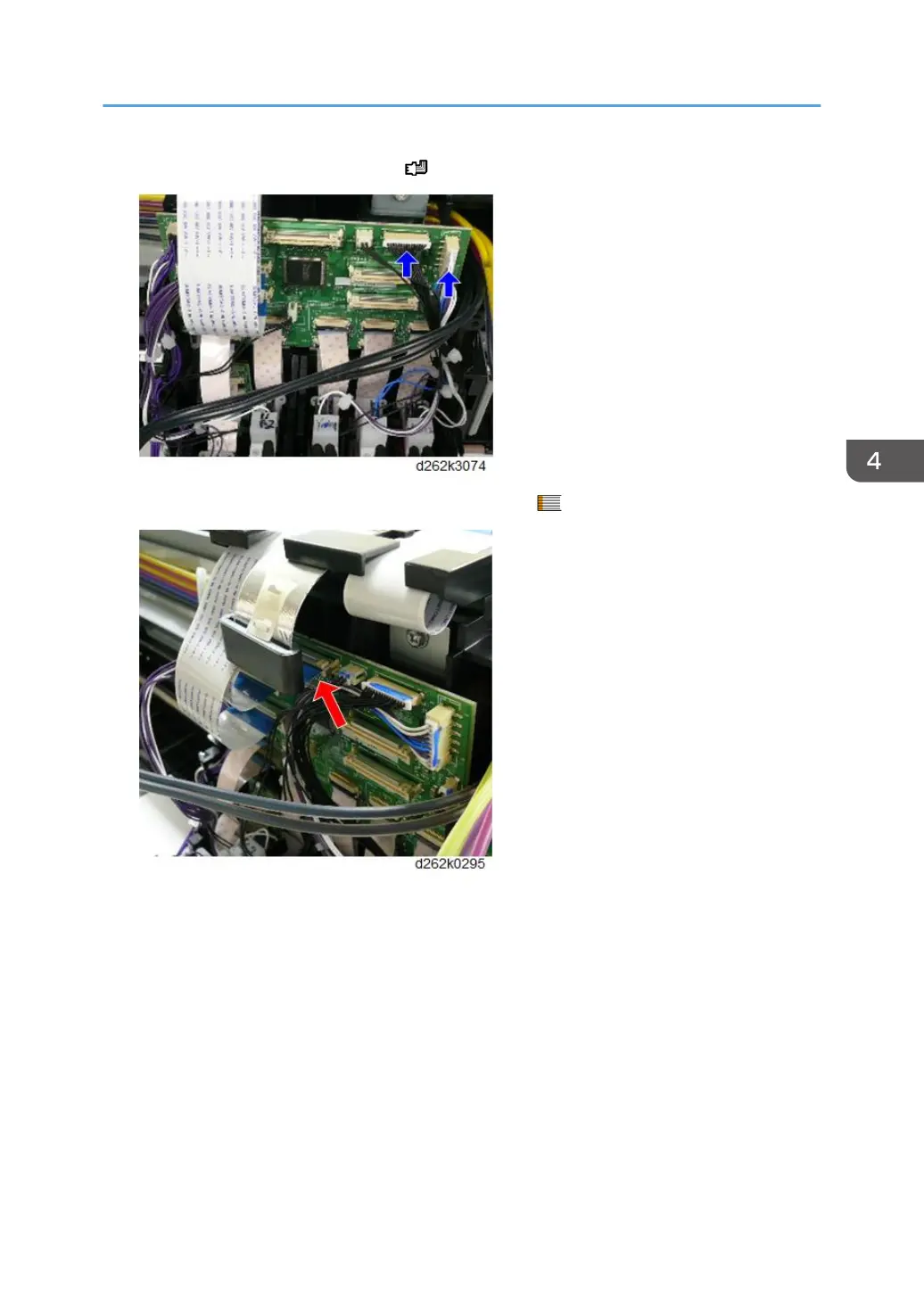

10. Connect the connector to the HRB. ( x2)

11. Connect the FFC to the center connector of the HRB. ( x1)

Carriage Unit

459
