Ricoh MP CW2201 Service Manual

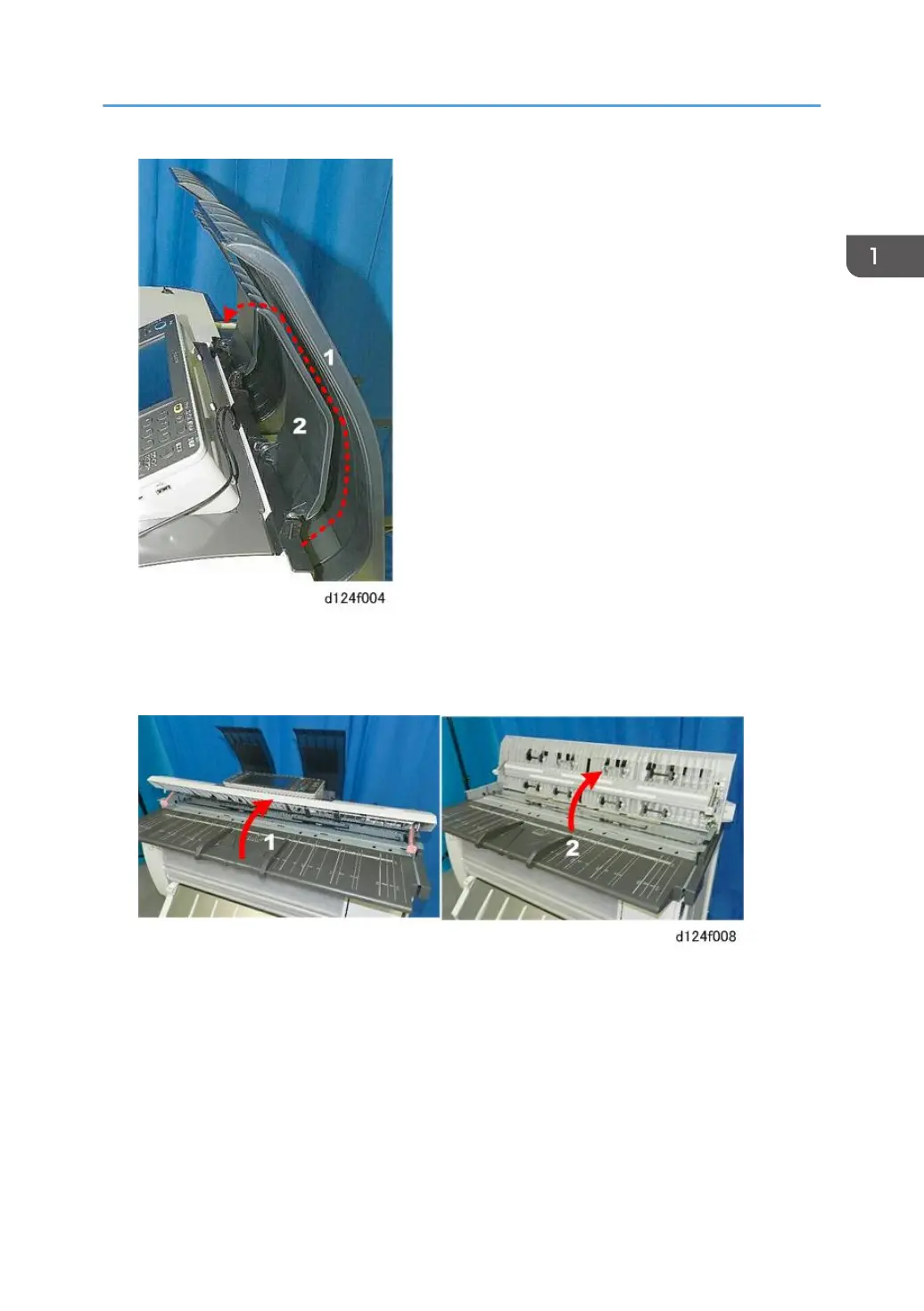

Scanner Unit Cover
The scanner unit opens easily for removal of paper jams (1), and can be opened to the full vertical
position (2) for servicing (this requires disconnect of the arms on the left and right).
Original Table
The plates on the original table of the scanner unit can be adjusted to accept originals up to 914.4
mm (36 in.) for scanning. Original length is limited to 15 m (49 ft.)
Overview
41

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
