Ricoh MP CW2201 Service Manual

Front Cover

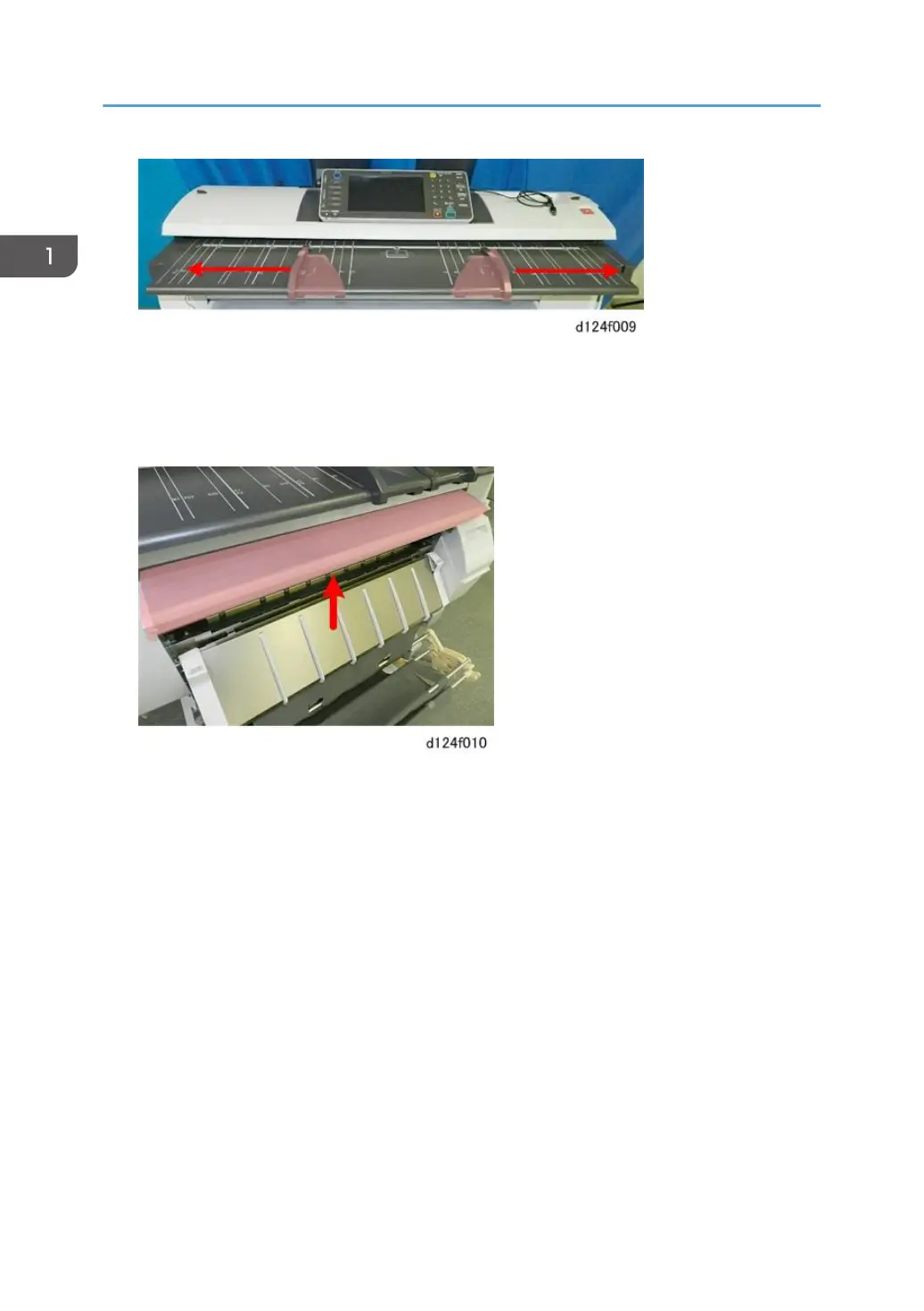

The front cover is easily raised and lowered to expose the platen for cleaning and paper jam
removal. The front cover locks in place and remains open after it has been raised. Two sensors
(micro-switches) on either end of the front cover detect when the cover is opened and closed.
When the pin on the left of the front cover is inserted correctly into its track [A], it slides down and
pushes a micro-switch [B] to the rear. This signals that the front cover is installed correctly. The open
switch signals a cover open error if the front cover is down but not correctly set in the track.
1. Product Information
42

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
