Ricoh MP CW2201 - Page 476

To Next Page

To Previous Page

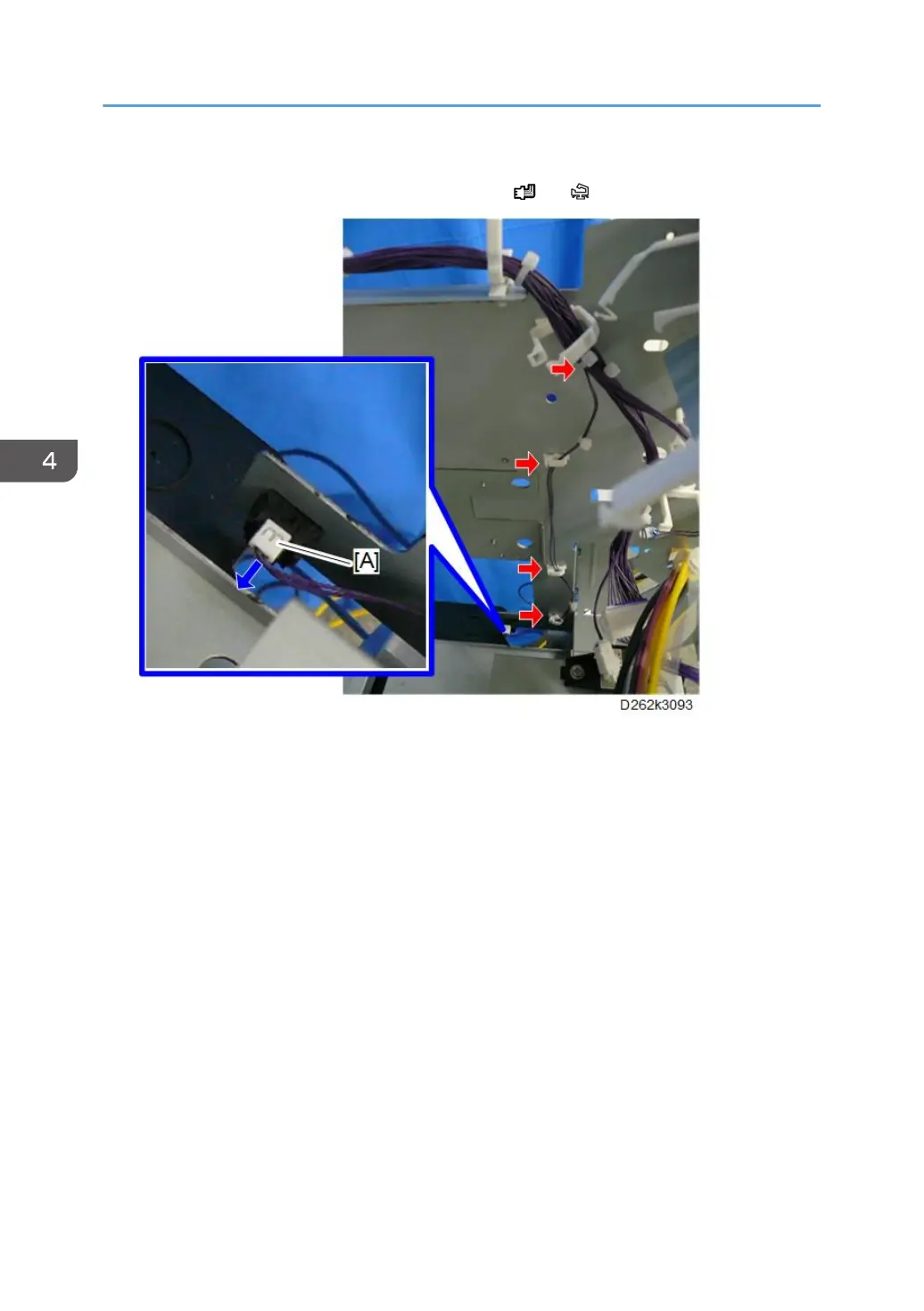

2. Remove the connector [A] of the ink collector tank cover sensor inside the right panel,

release the clamps, and free the sensor harness. ( x1, x4)
