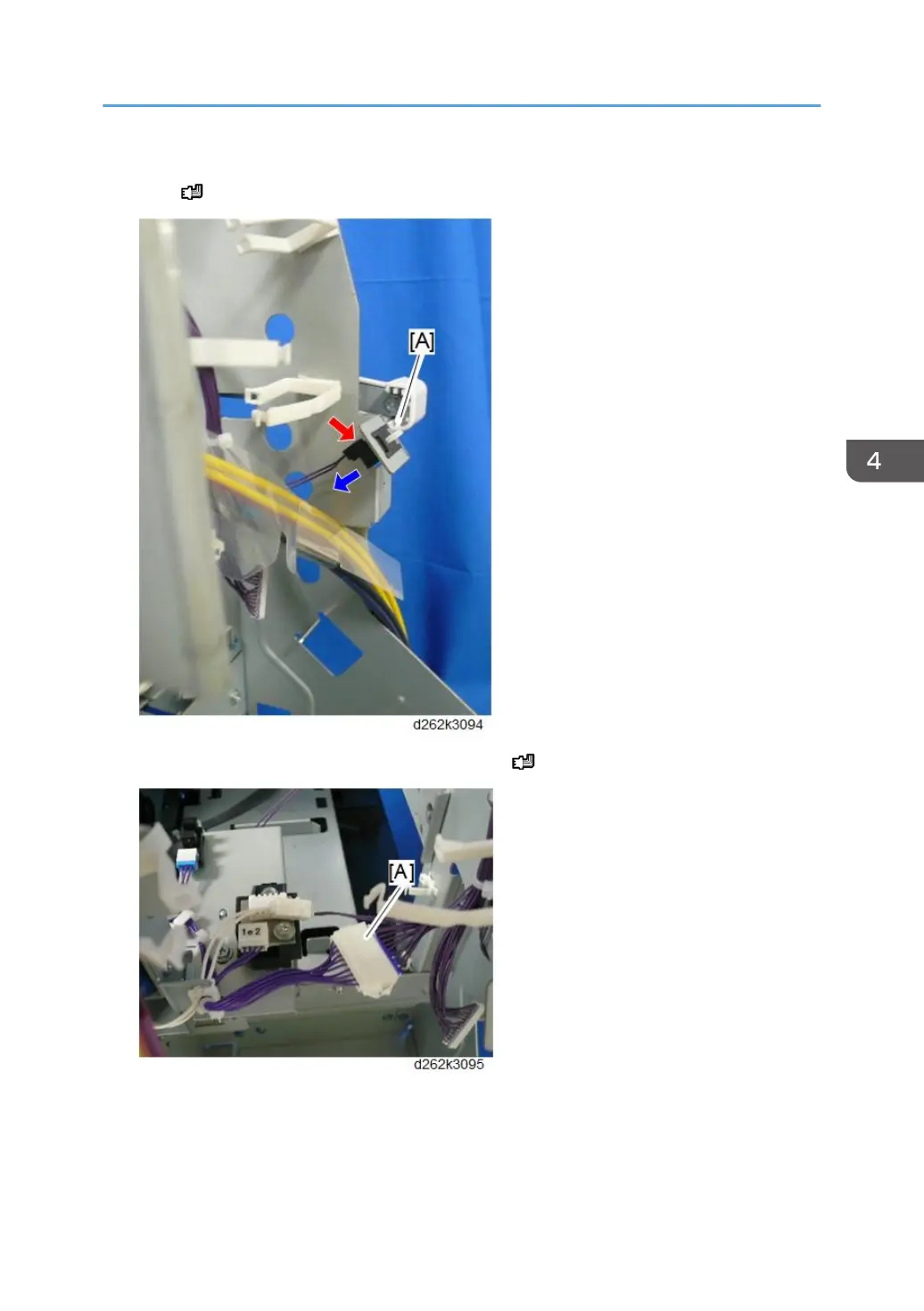

3. Remove the connector of the ink cartridge cover sensor [A] inside the front of the main

unit. ( x1)

4. Remove the connector [A] of the ink supply unit. ( x2)

Carriage Unit

471
