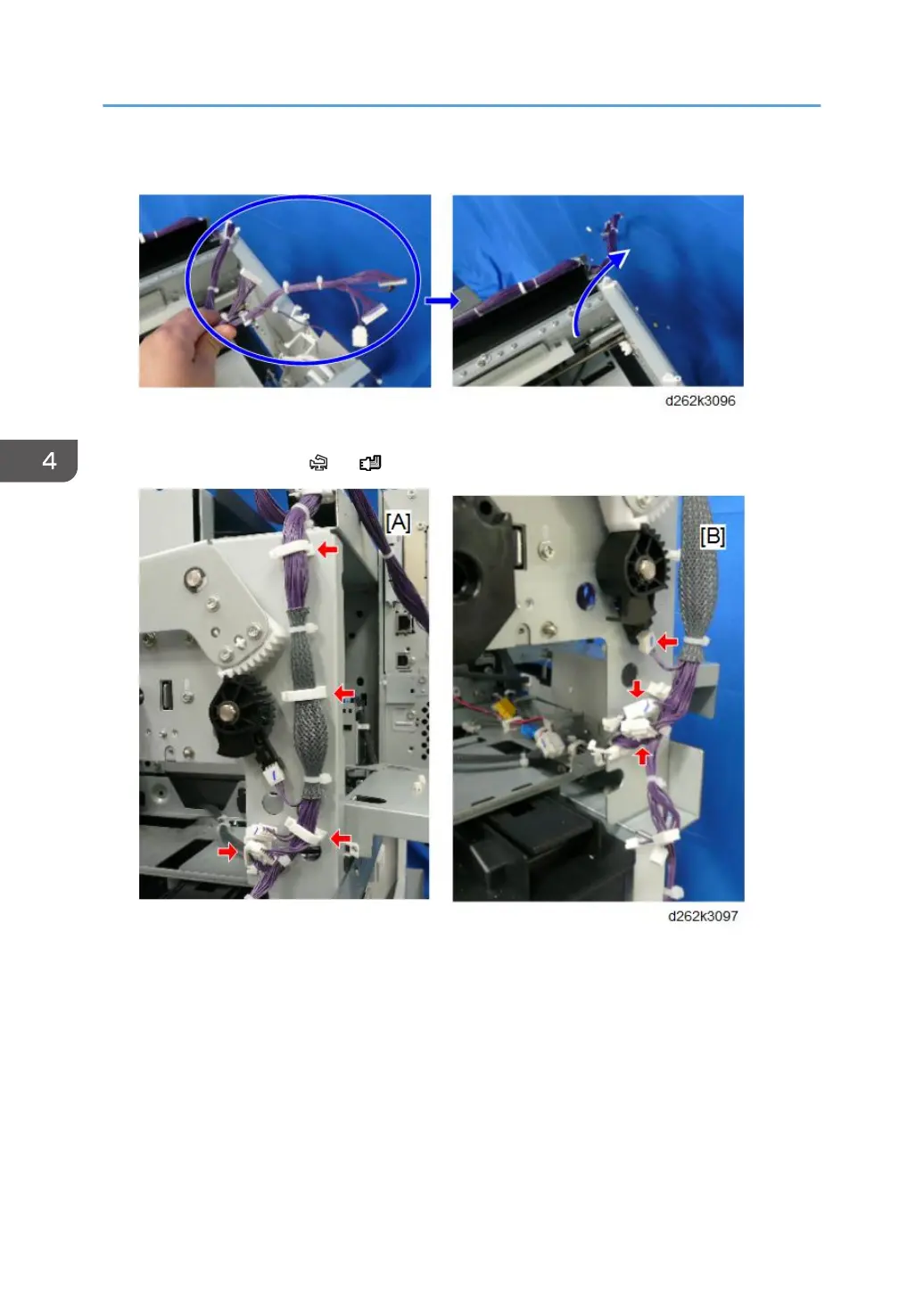

5. Take out the harnesses from the main unit and move them to the back of the main unit.
6. Release the clamps [A] and remove the connectors [B] on the right back of the main unit,
and free the harness. ( x4, x2)
7. Free the auto-nozzle check unit (p.540).
4. Replacement and Adjustment
472
