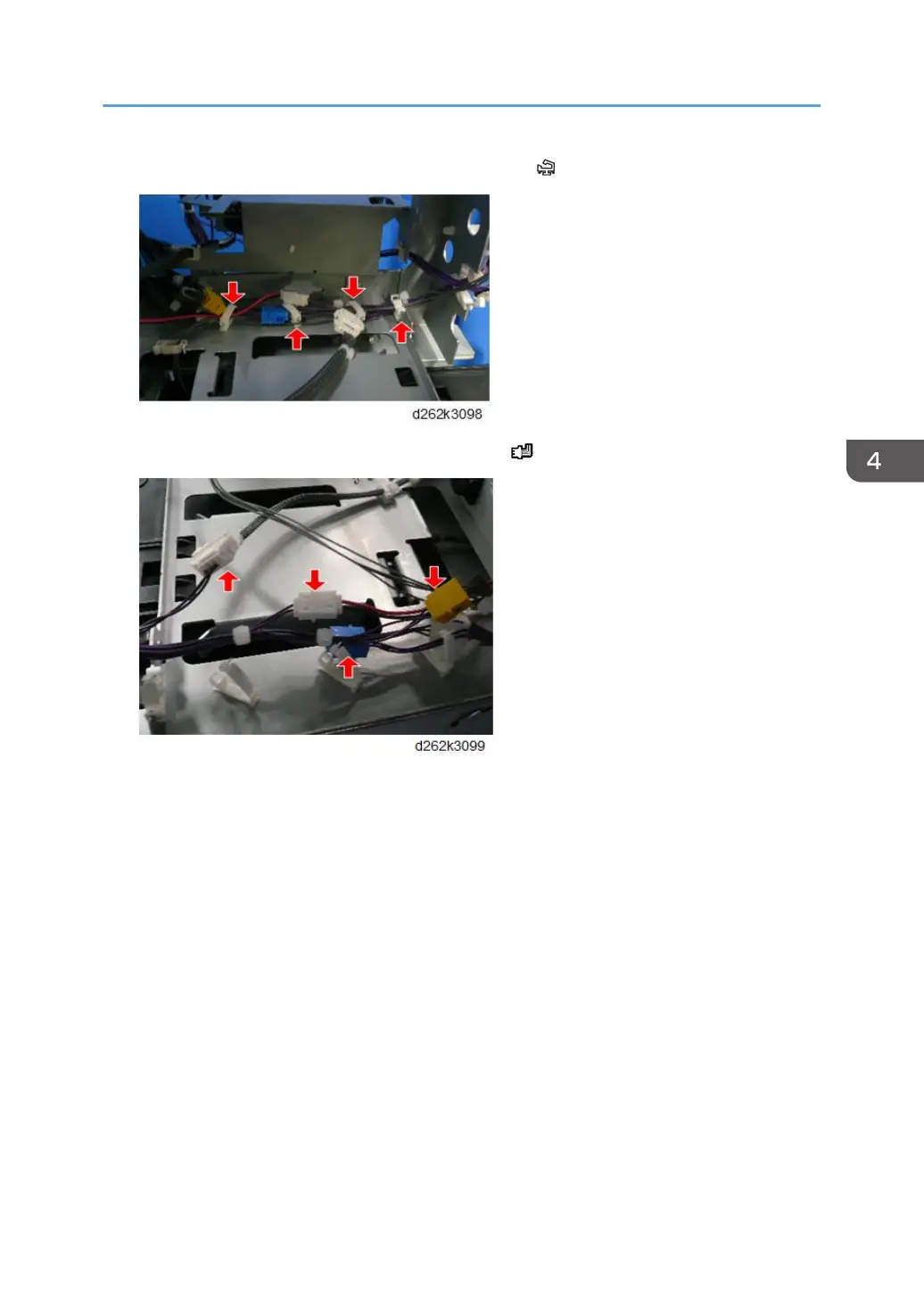

8. Release the clamps inside the right of the main unit. ( x4)

9. Remove the connectors, and free the harnesses. ( x4)

10. Take out the harnesses from the main unit.

Carriage Unit

473
