Ricoh MP CW2201 Service Manual

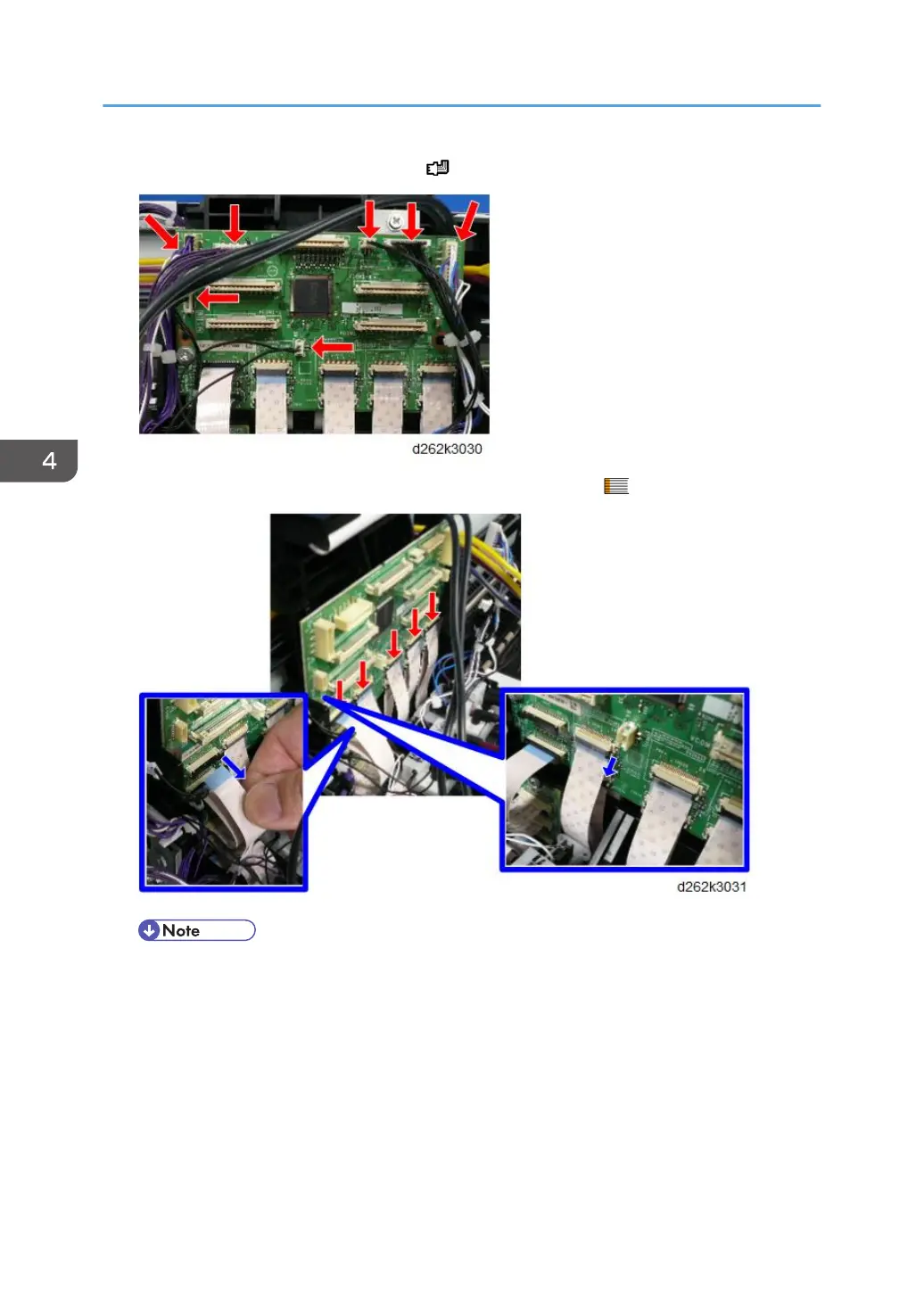

7. Remove the connector from the HRB. ( x7)
8. Release the FFCs (front side) from the lower part of the HRB. ( x5)
• To release the FFCs, be sure you understand of the directions of the locks.
• To release the FFCs [A], pull the lock toward you.
• To release the FFCs [B], push up the lock.
4. Replacement and Adjustment
490
