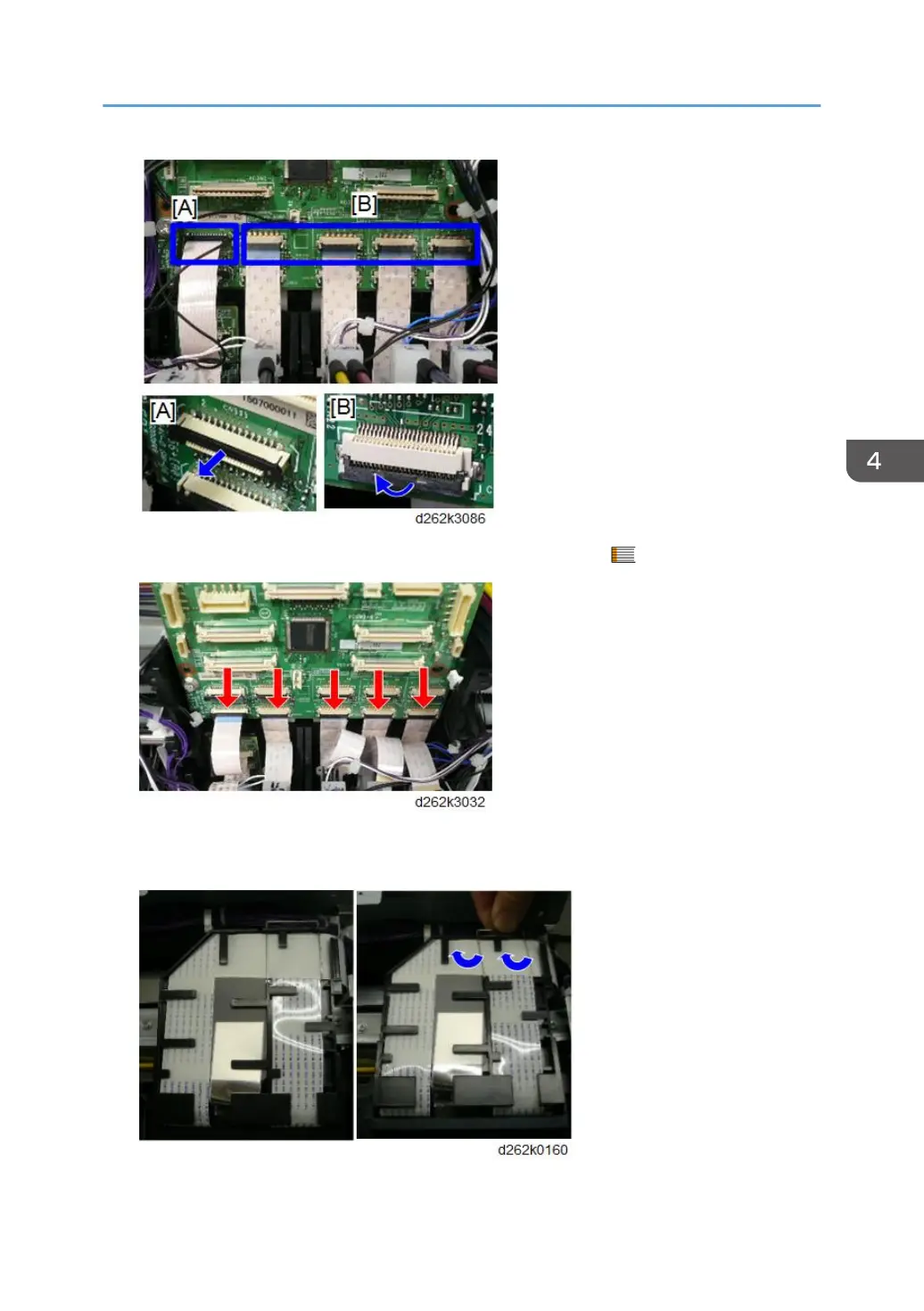

9. Release the FFCs (backward) from the lower part of the HRB. ( x5)

10. Slide the wire retainer on the right top of the FFC guide plate to the left while holding it

pushed and remove it from the cutout.

Carriage Unit

491
