Paper Holding Lever
There is no bypass feed tray, but paper can be fed manually for bypass printing.

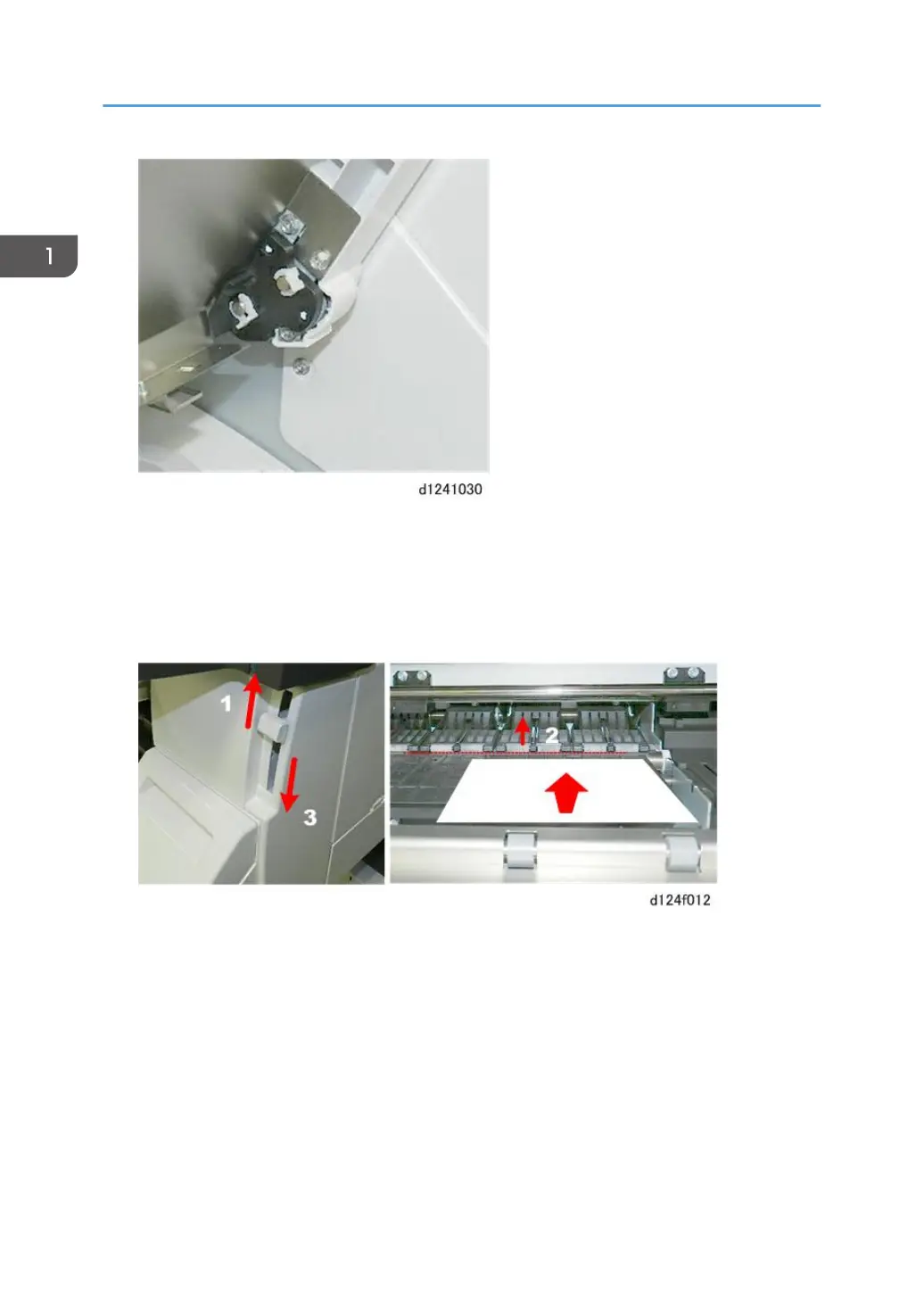

Raising the paper holding lever [1] lifts the registration rollers [2] so that cut-sheet paper can be
loaded on the right side of the platen. Lowering the lever [3] clamps the paper in place for paper
feed.
Ink Cartridge Cover
The ink cartridge cover can be opened and closed for the insertion and removal of the four ink
cartridges. A small sensor (micro-switch) detects when this cover is opened and closed.
1. Product Information
44

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
