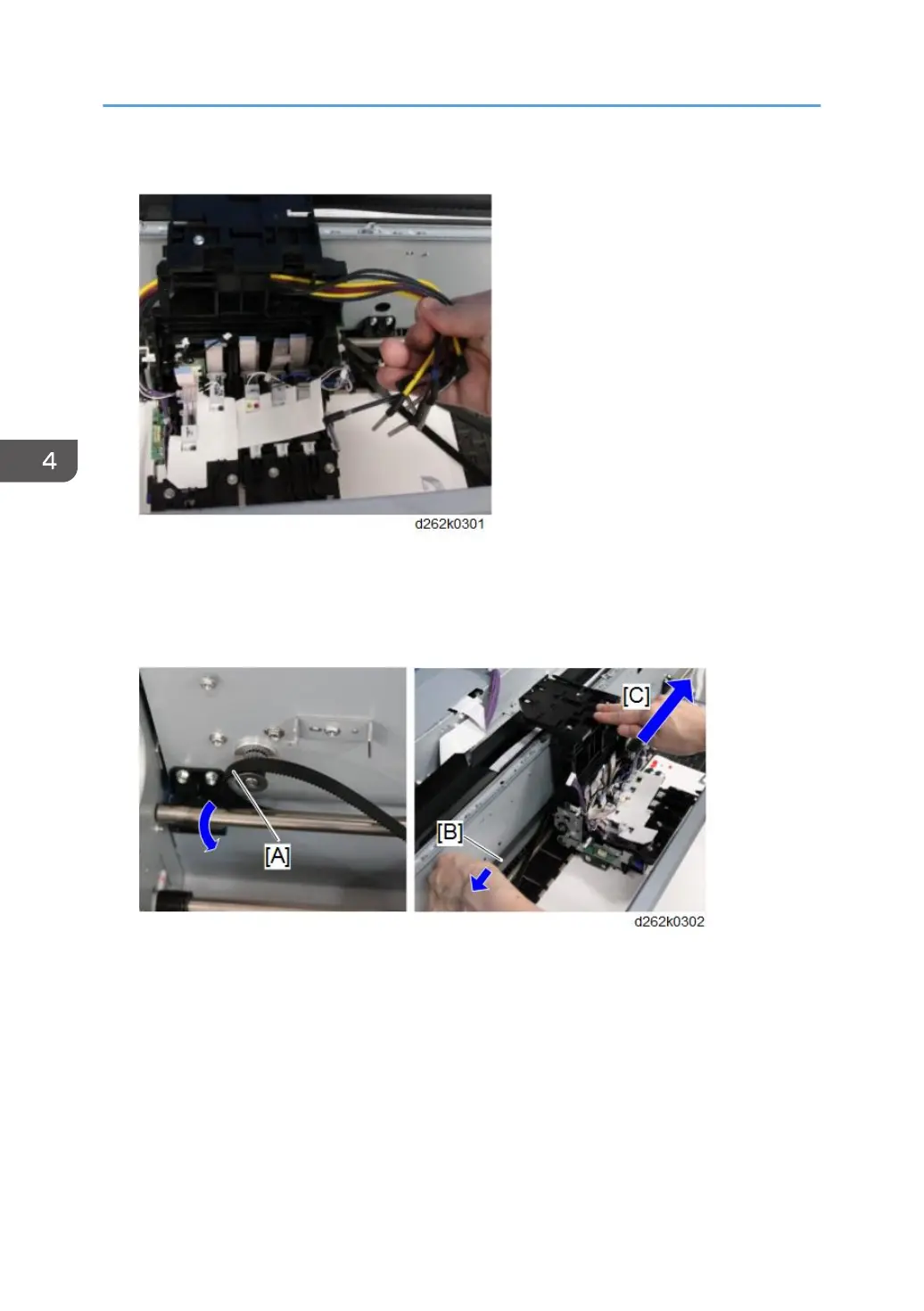

22. Remove the ink tubes from the carriage unit.
23. On the left of the main unit, remove the horizontal timing belt [A] from the motor drive
gear.
24. Move the carriage unit to the right end of the main unit [C] while pulling up the horizontal
timing belt [B] (to prevent the belt from fouling at the back of the carriage unit).
