Ricoh MP CW2201 Service Manual

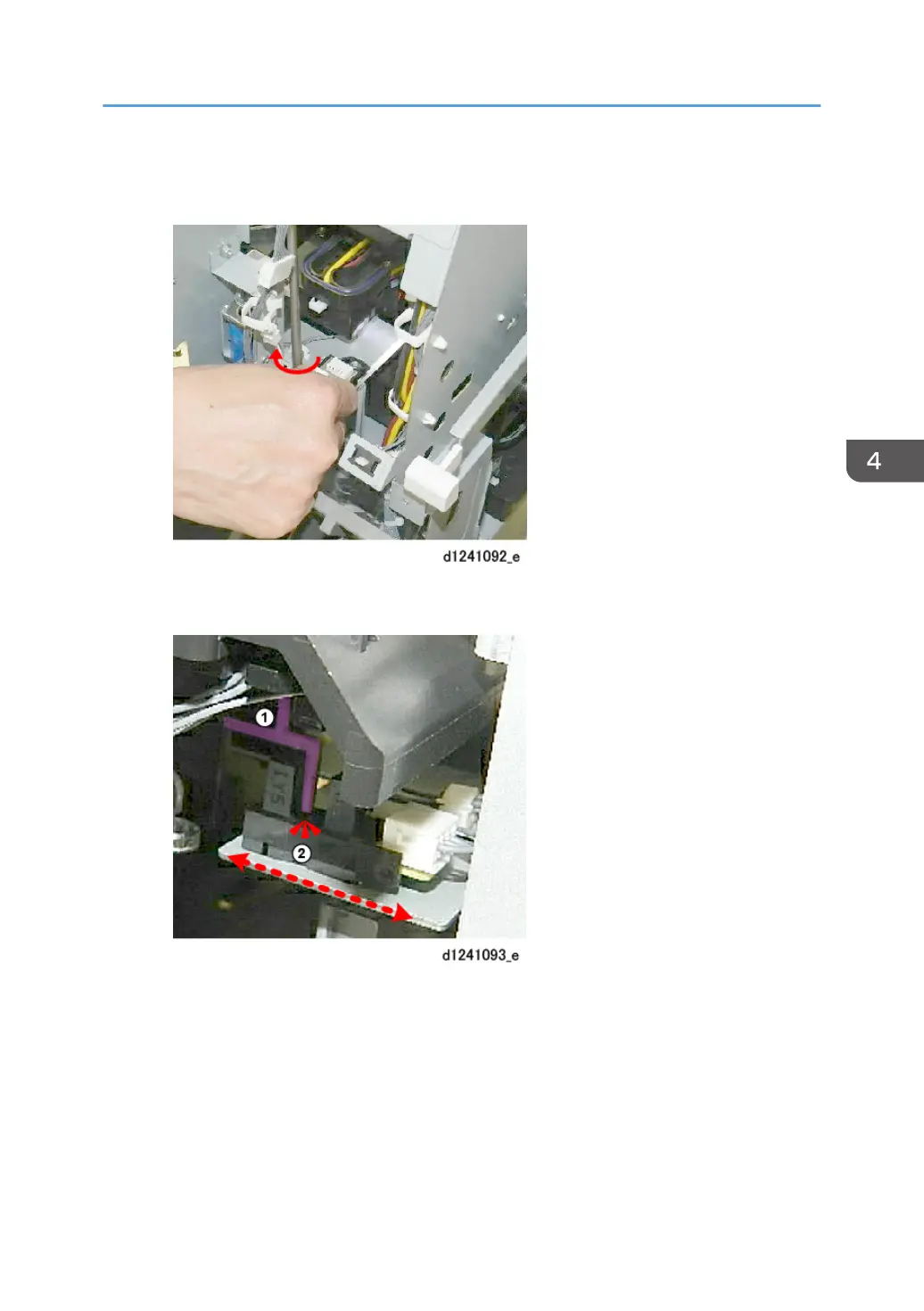

Attach the main ink level sensor bracket in the procedure below.
1. Loosen the screw of the bracket to move the bracket back and forth.
2. Check that the feeler is placed at the center of the feeler sensor [1] [2]. If it is not placed at the
center, adjust the position by moving the bracket back and forth.
3. Tighten the screw of the bracket.
Carriage Unit
503

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
