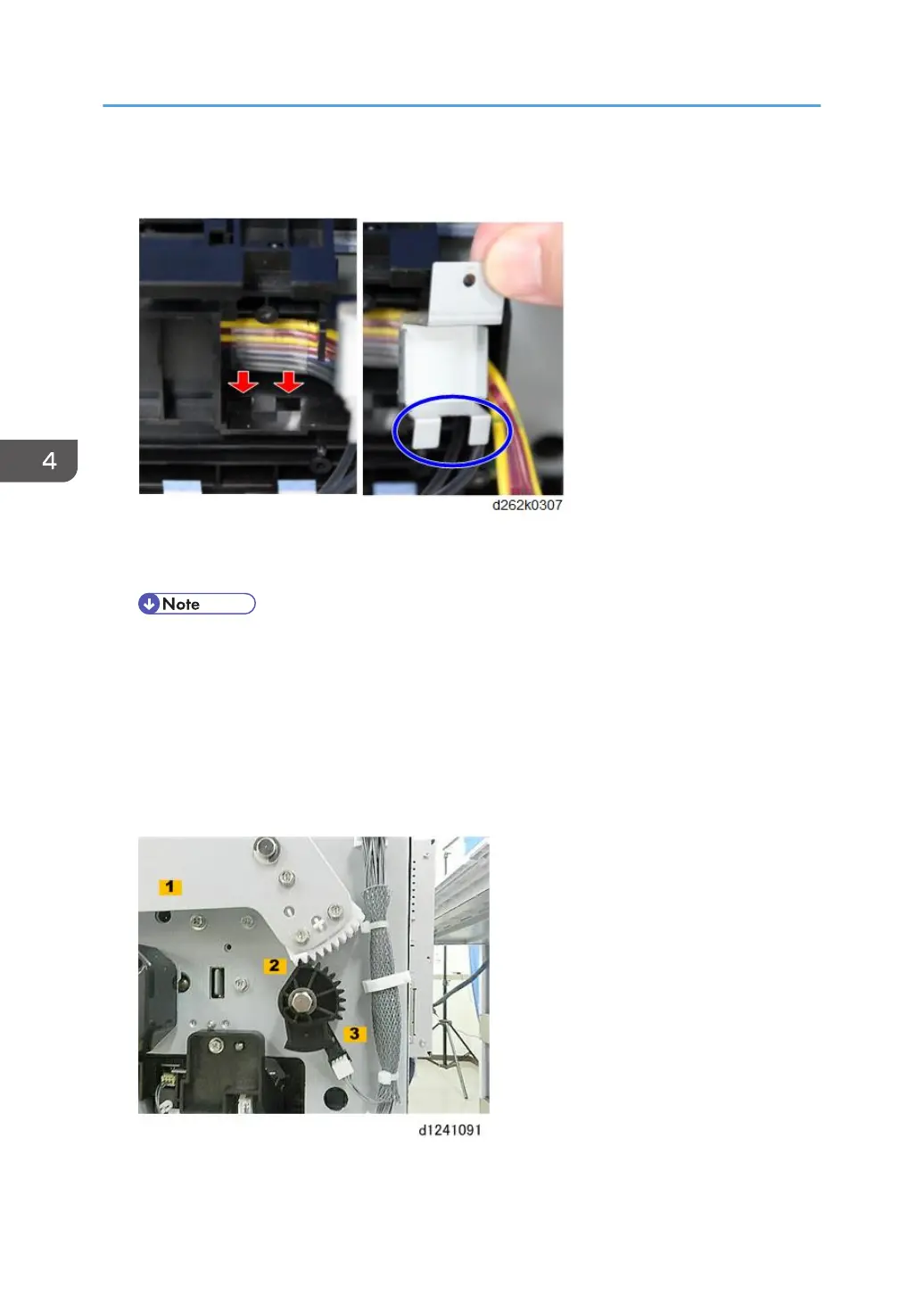

To attach the bracket to secure the ink tubes, insert the two projections under the bracket to the
holes of the carriage unit.
When the carriage unit installation completes, move the unit right and left to check that it does
not fall down from the rail.
• If the ink tube falls down, the ink tube is loosely attached on the left of the carriage unit.
Remove the bracket to secure the ink tubes and pull the ink tube from the left of the carriage
unit as possible to remove the looseness.
When the paper holding lever is attached, check the followings:
[1] The paper holding lever is horizontal.
[2] The gear and the first gear teeth of the paper holding lever are aligned.
[3] The actuator for the gear is in the gap of the registration release sensor.
4. Replacement and Adjustment
502
