Ricoh MP CW2201

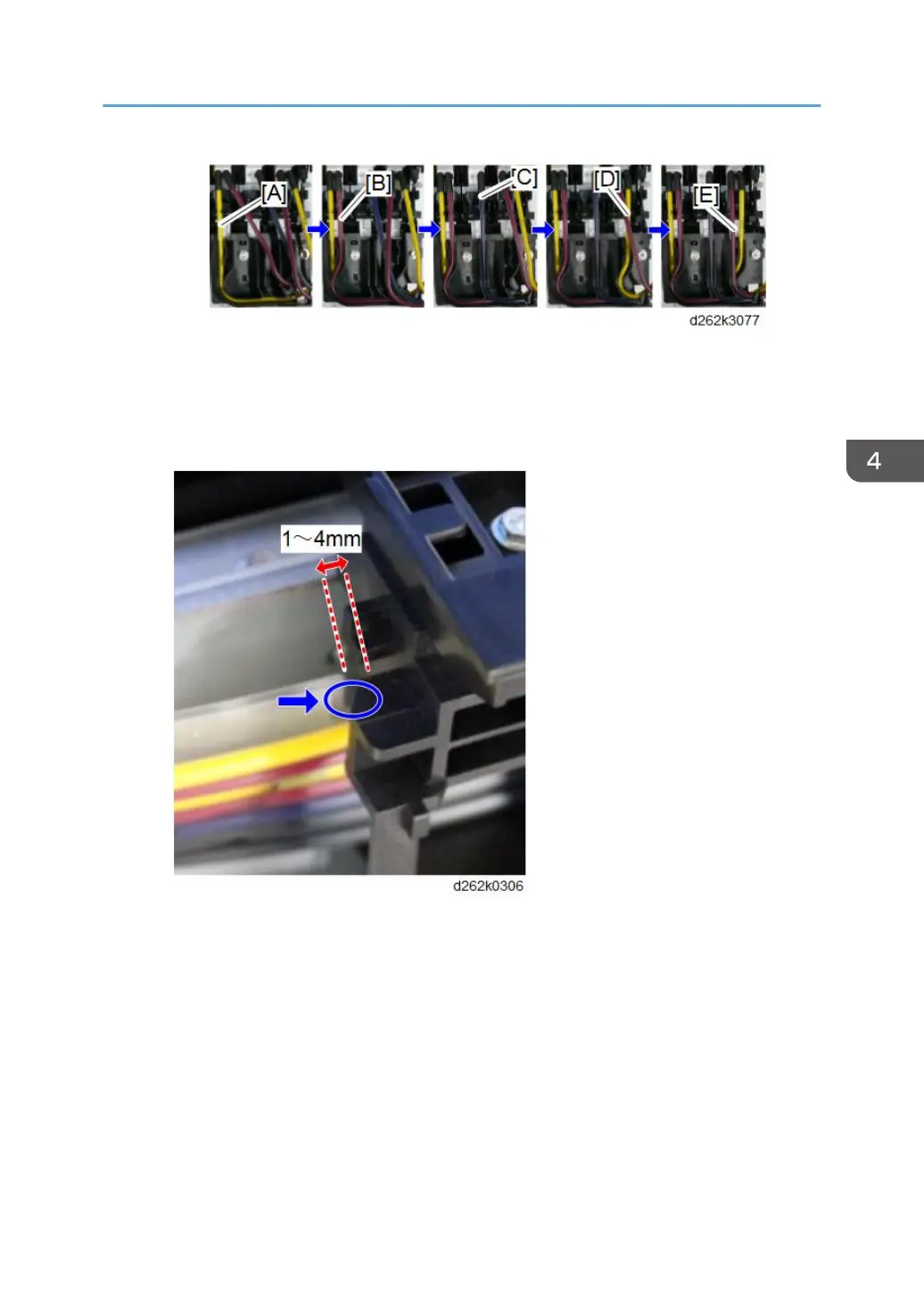

Before attaching the bracket to secure the ink tubes, check the followings:
• Place the ink tube so that the cutout of the ink tube guide is placed 1 to 4 mm apart from the
side of the carriage unit.
• Check that there is the space between the ink tube guide and the carriage unit.
Carriage Unit
501
