Ricoh MP CW2201

To Next Page

To Previous Page

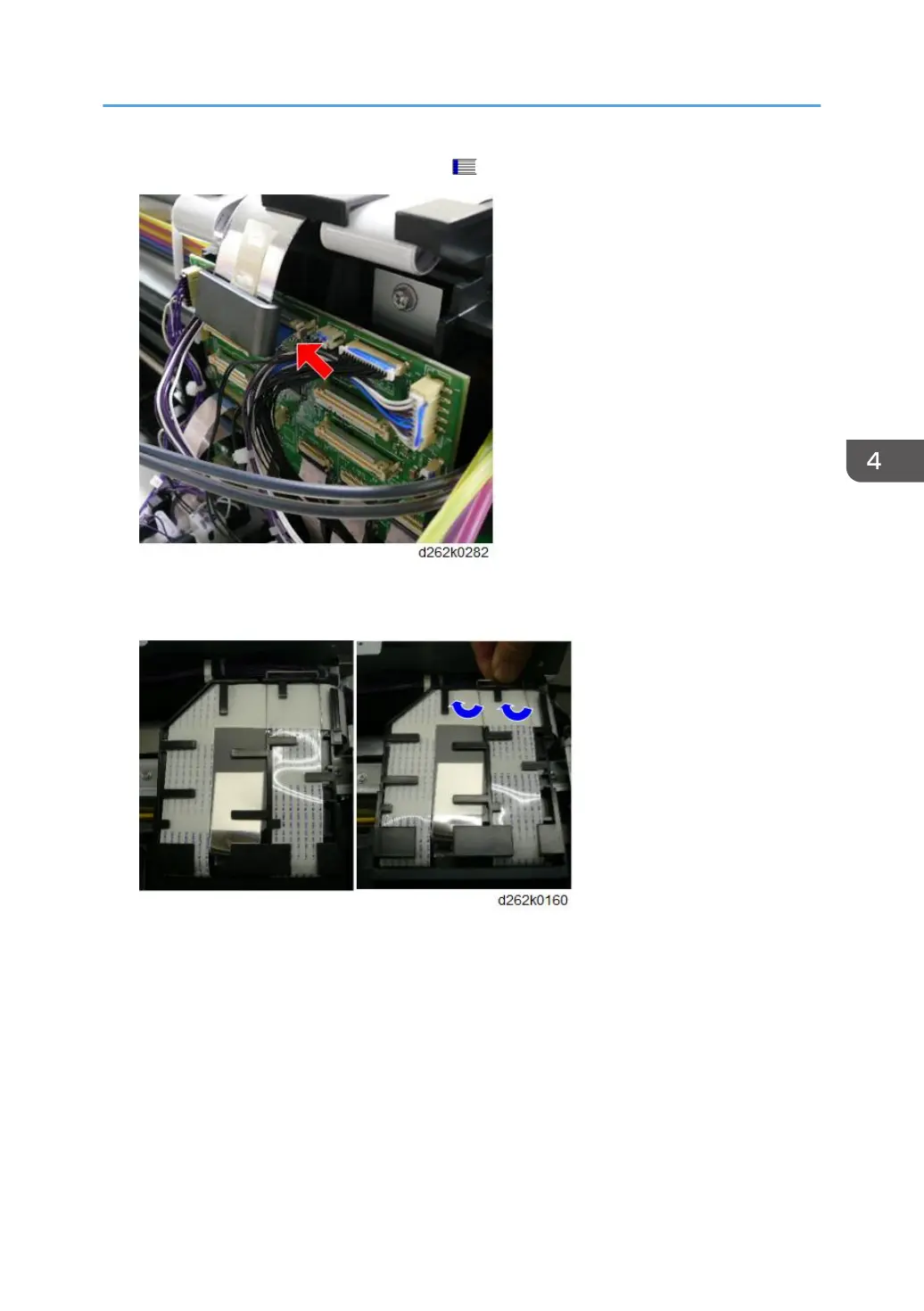

6. Release the FFC at the center of the HRB ( x1).

7. Press and pull the wire retainer to the left on the upper right of the flat cable guide plate

to remove it from the cutout.

Ink Supply

509

Main Page
