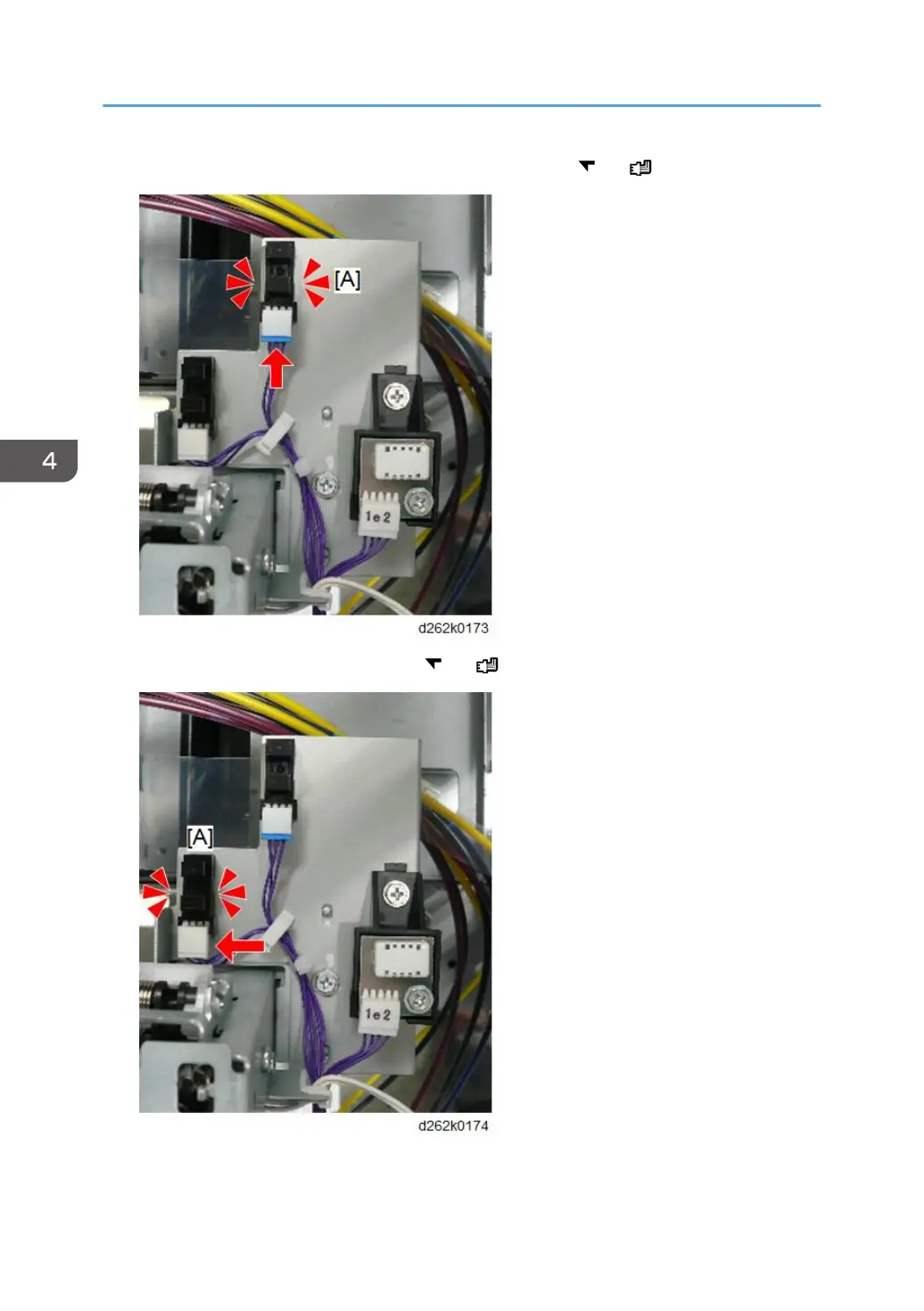

2. Remove the ink level sensor (M1, Y1, C, M2, Y2, K2) [A] ( x3, x1).

3. Remove the ink level sensor (K1) [A] ( x3, x1).

4. Replacement and Adjustment

528
