Ricoh MP CW2201 Service Manual

• Right cover (p.239)
• Right upper cover (p.241)
• Ink cartridge cover (p.243)
To remove the temperature/humidity sensor, go to step 1.
To remove the ink level sensor, go to step 2.

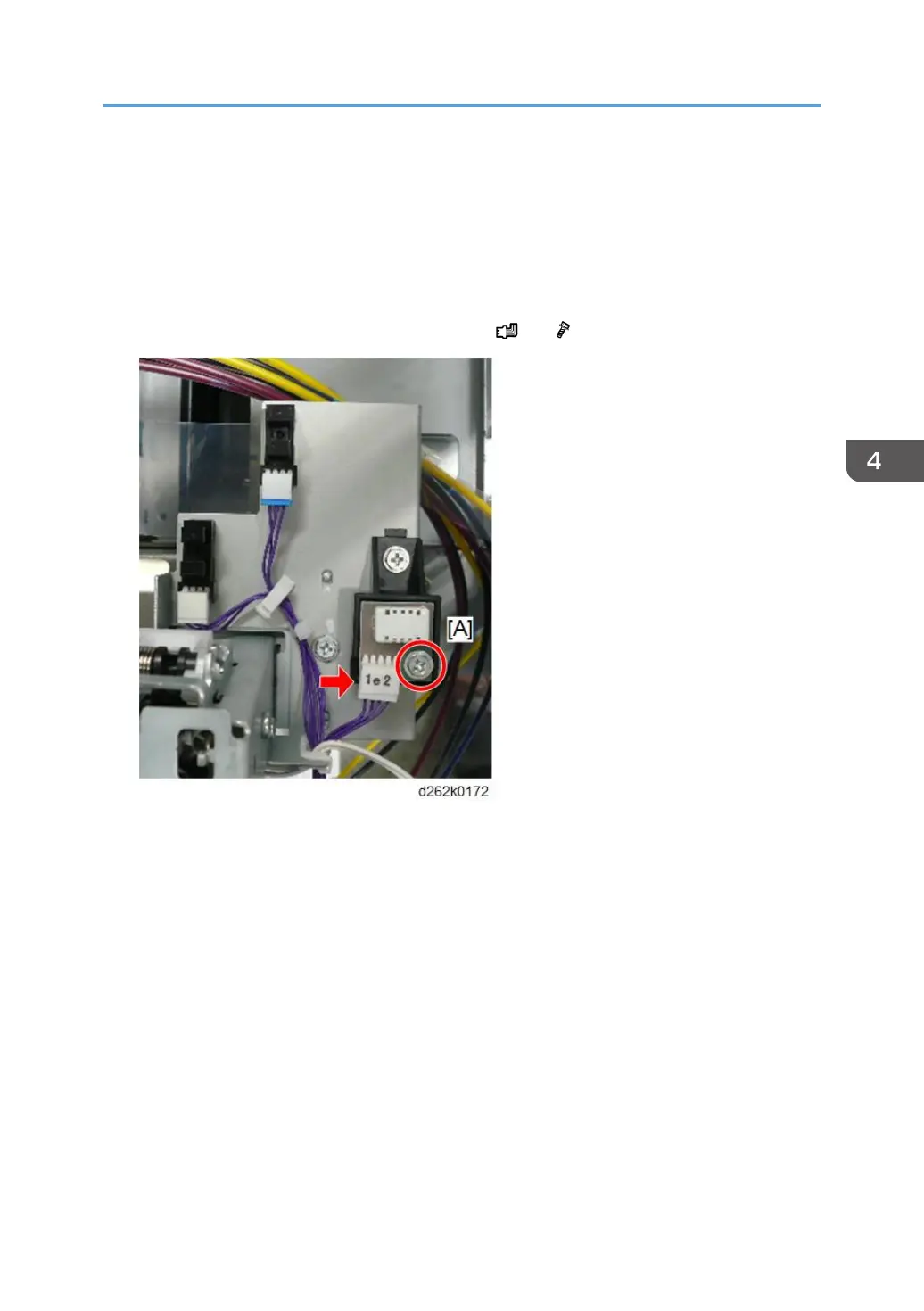

1. Remove the temperature/humidity sensor [A] ( x1, x1).
Ink Supply
527

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
