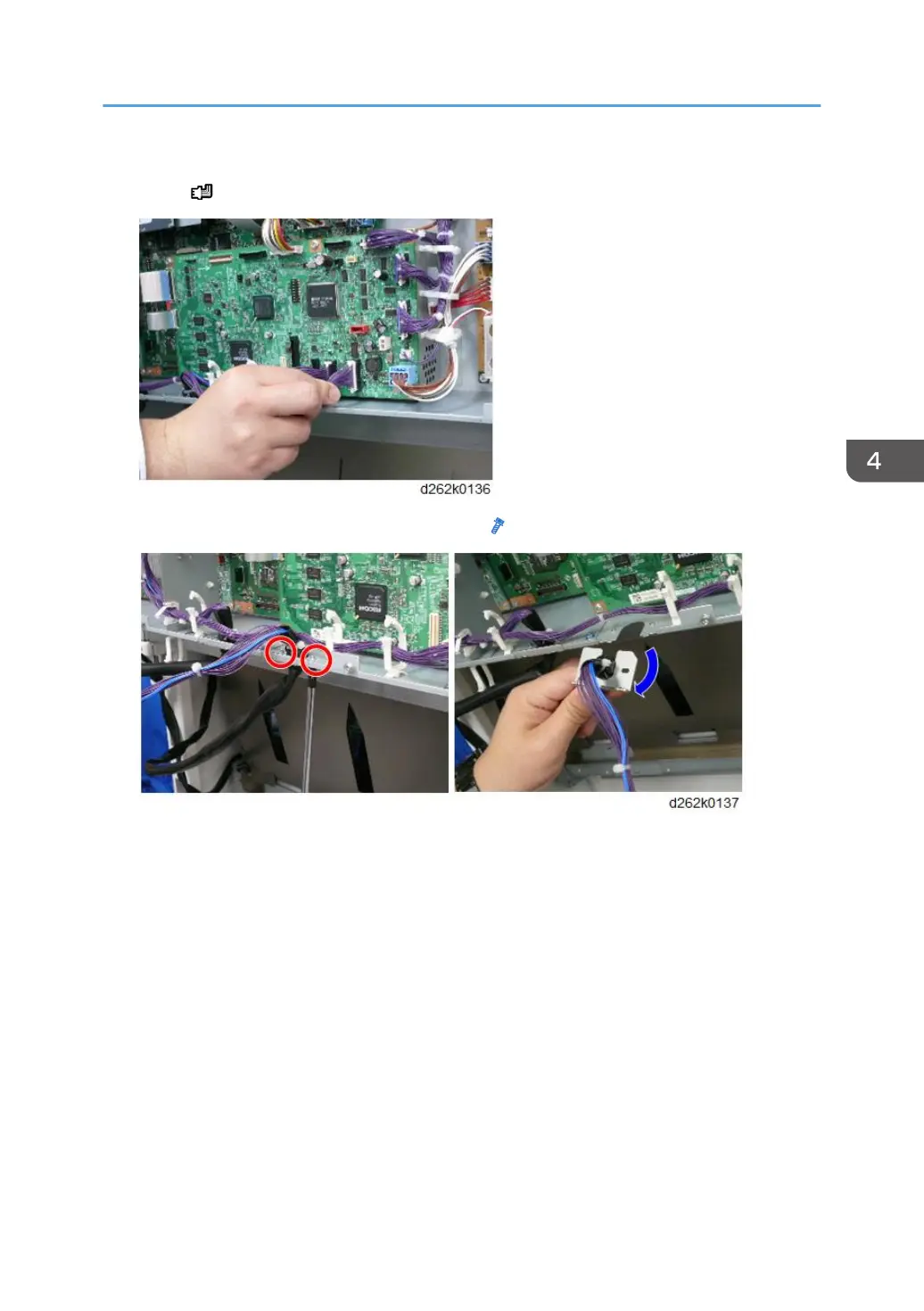

7. Disconnect the connector from CN254 of the IOB and pull away the harness of the roll
unit 1 ( x1).
8. Remove the harness bracket of the roll unit 1 ( x2).
If the roll unit 2 is mounted, go to step 9.
If only the roll unit 1 is mounted, go to step 10.
