Ricoh MP CW2201

To Next Page

To Previous Page

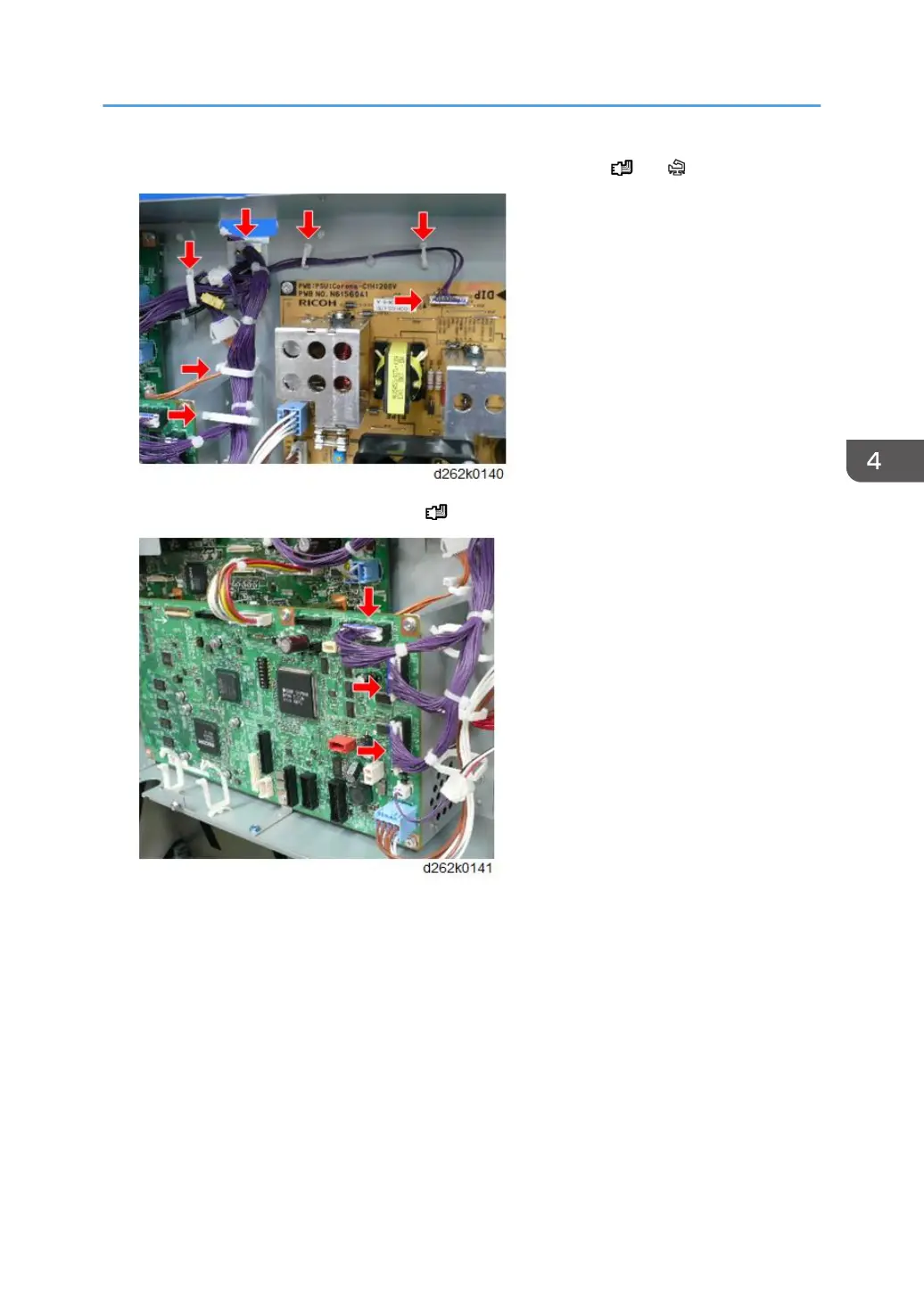

11. Remove the connector and clamps shown in the figure below ( x1, x6).

12. Disconnect the connectors of the IOB ( x7).
