Ricoh MP CW2201

To Next Page

To Previous Page

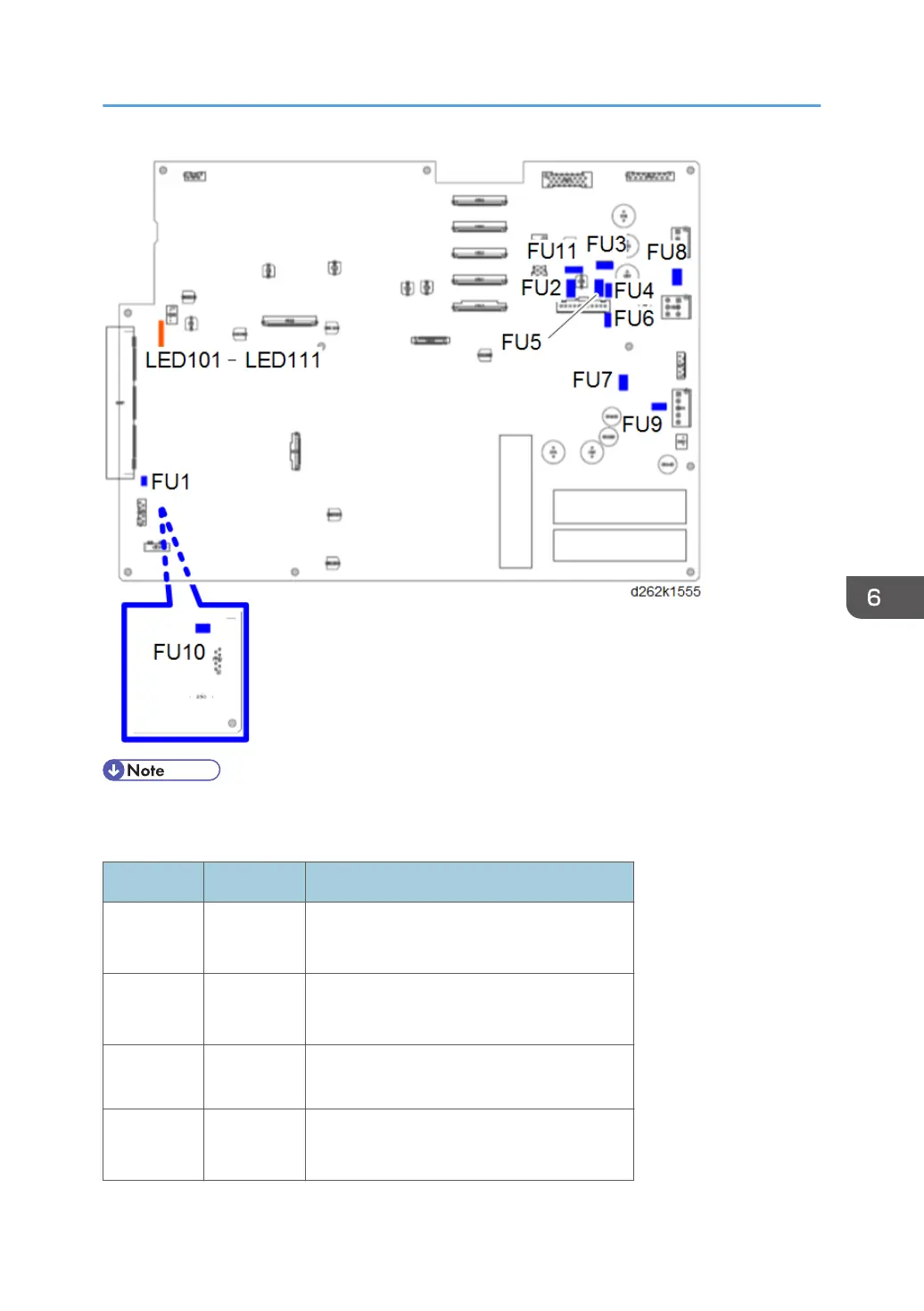

• FU10 is located on the back surface of the board.

LED Status

LED Color LED Status

LED101

Yellow-

green

Normal: Flash

Abnormal: Lit orNot lit

LED102

Yellow-

green

Operation: Flash

Others: Not lit

LED103

Yellow-

green

DSP start check

LED105

Yellow-

green

Normal: Flash

Abnormal: Not lit

Fuses

765
