Ricoh MP CW2201 Service Manual

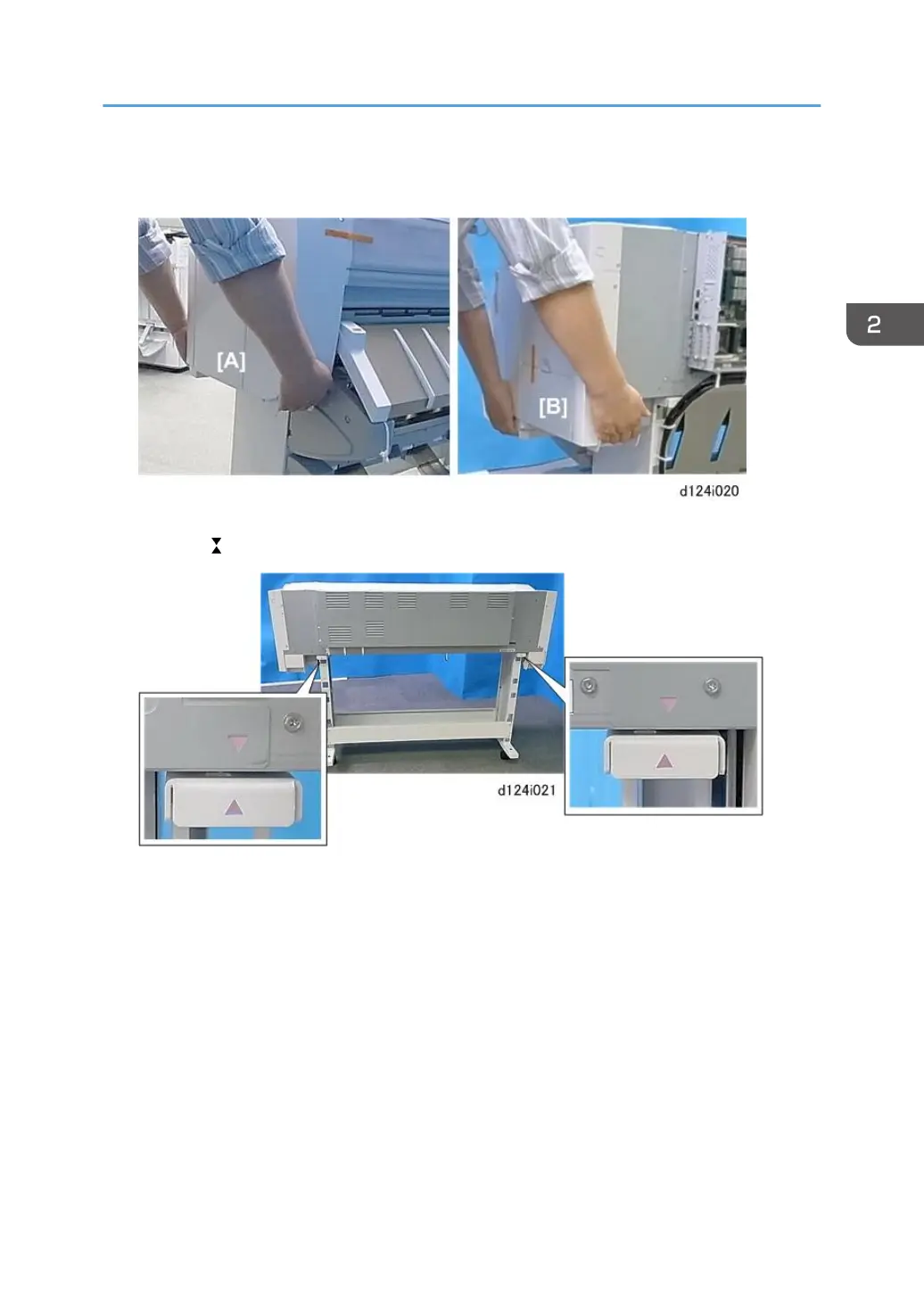

4. With two people holding the left end [A] and right end [B] (their hands positioned as
shown below) lift the main unit and hold it over the top the main unit stand.
5. Position the main unit over the top of the stand so that the triangle marks at the rear are
aligned ( ).
Main Machine Installation
73

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
