Ricoh MP CW2201 Service Manual

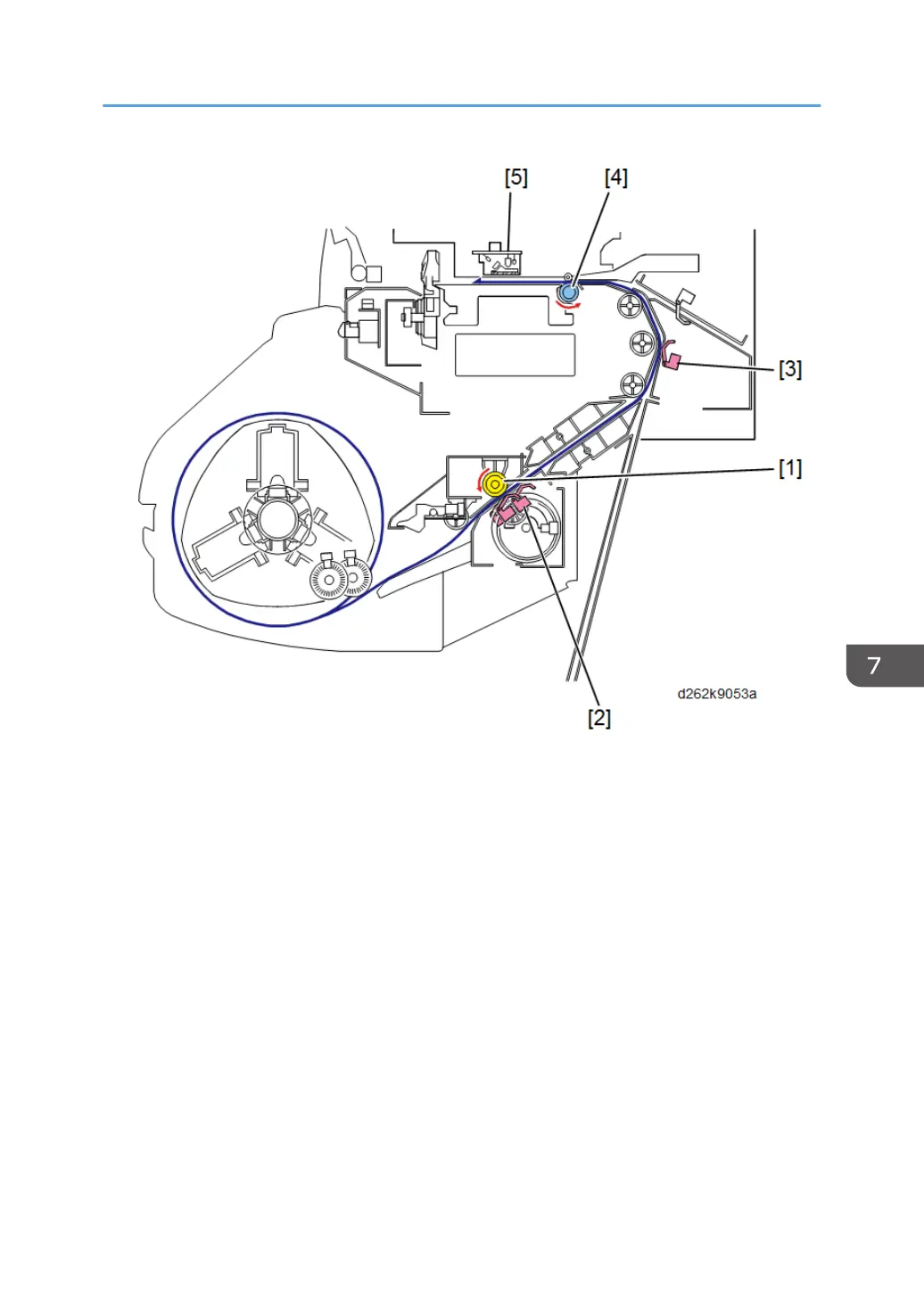

• The roll feed roller [1] feeds the paper over the feeler of the paper exit sensor [2] and out of the roll
feeder into the vertical feed path of the main machine.
• When the leading edge of the paper reaches the pre-registration sensor [3], the vertical motor on
the left side of the machine turns ON and rotates the registration roller [4].
• When the DRESS sensor [5] detects the leading edge of the paper, the vertical motor stops.
Paper Feed and Exit
801

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
