Ricoh MP CW2201 Service Manual

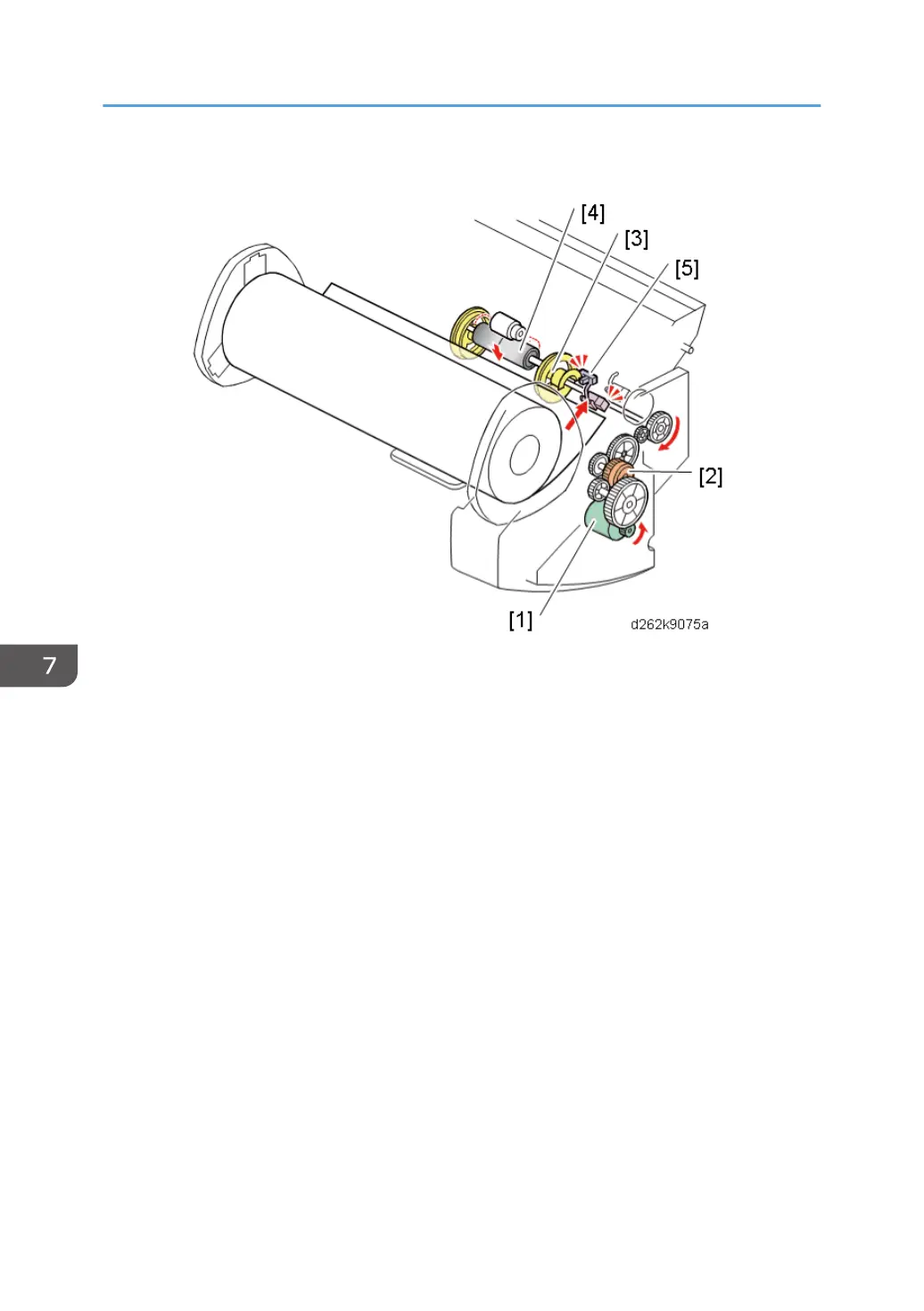

• At the same time, the roll paper feed motor [1] and clutch [2] also stop.
• Then the clutch turns ON again but the motor rotates counter-clockwise.
• When the motor turns in this direction, the cam shaft [3] rotates and moves the idle roller [4] down
until the paper release sensor [5] turns ON.
• The feed roller and idle roller are now separated.
7. Detailed Description
802

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
