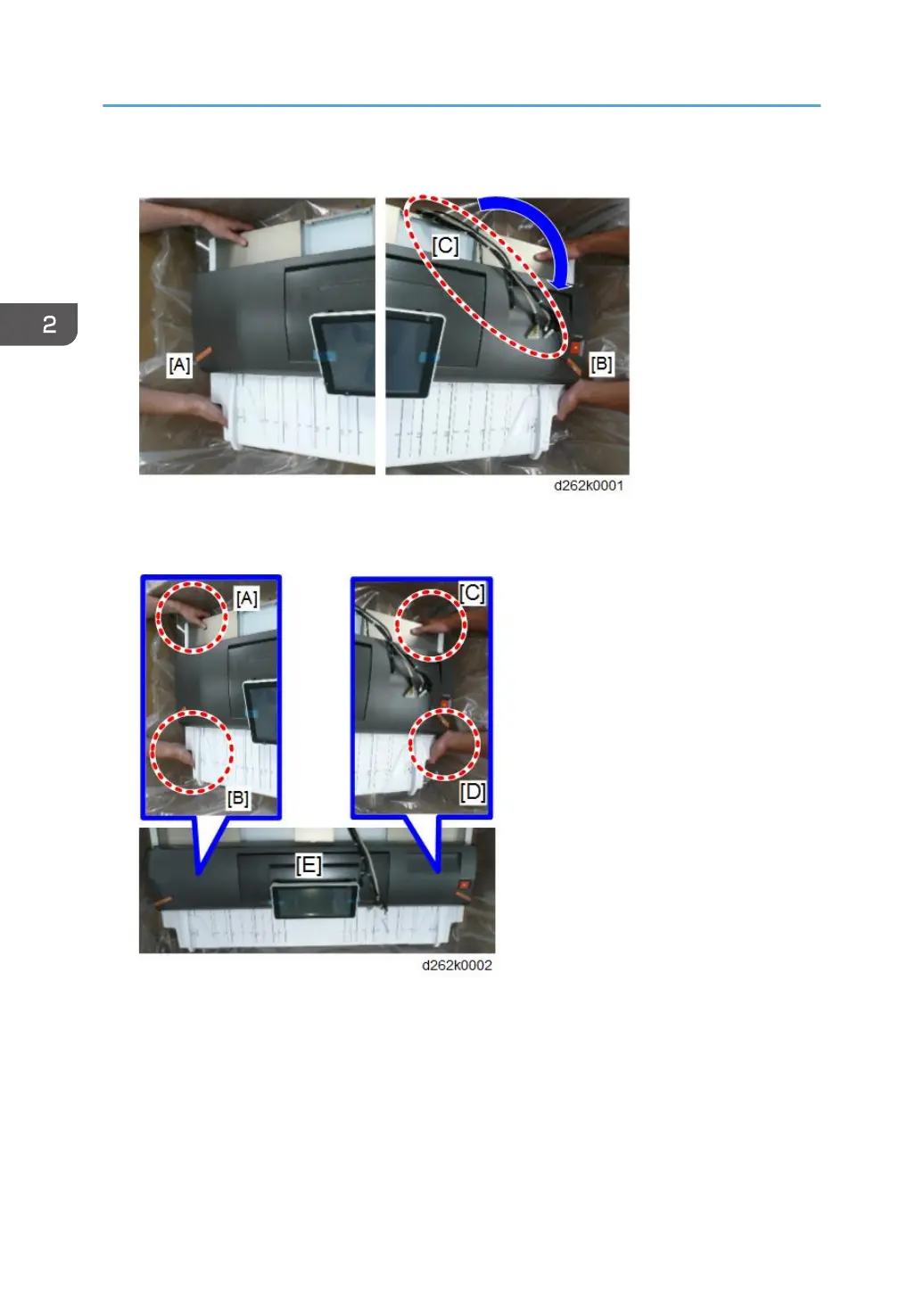

3. Arrange the harness [C] in front as shown below.
4. With two people holding both ends of the scanner unit (with their hands positioned as
shown below [A] to [D]), set the scanner unit [E] on top of the scanner stand.
2. Installation
80

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
