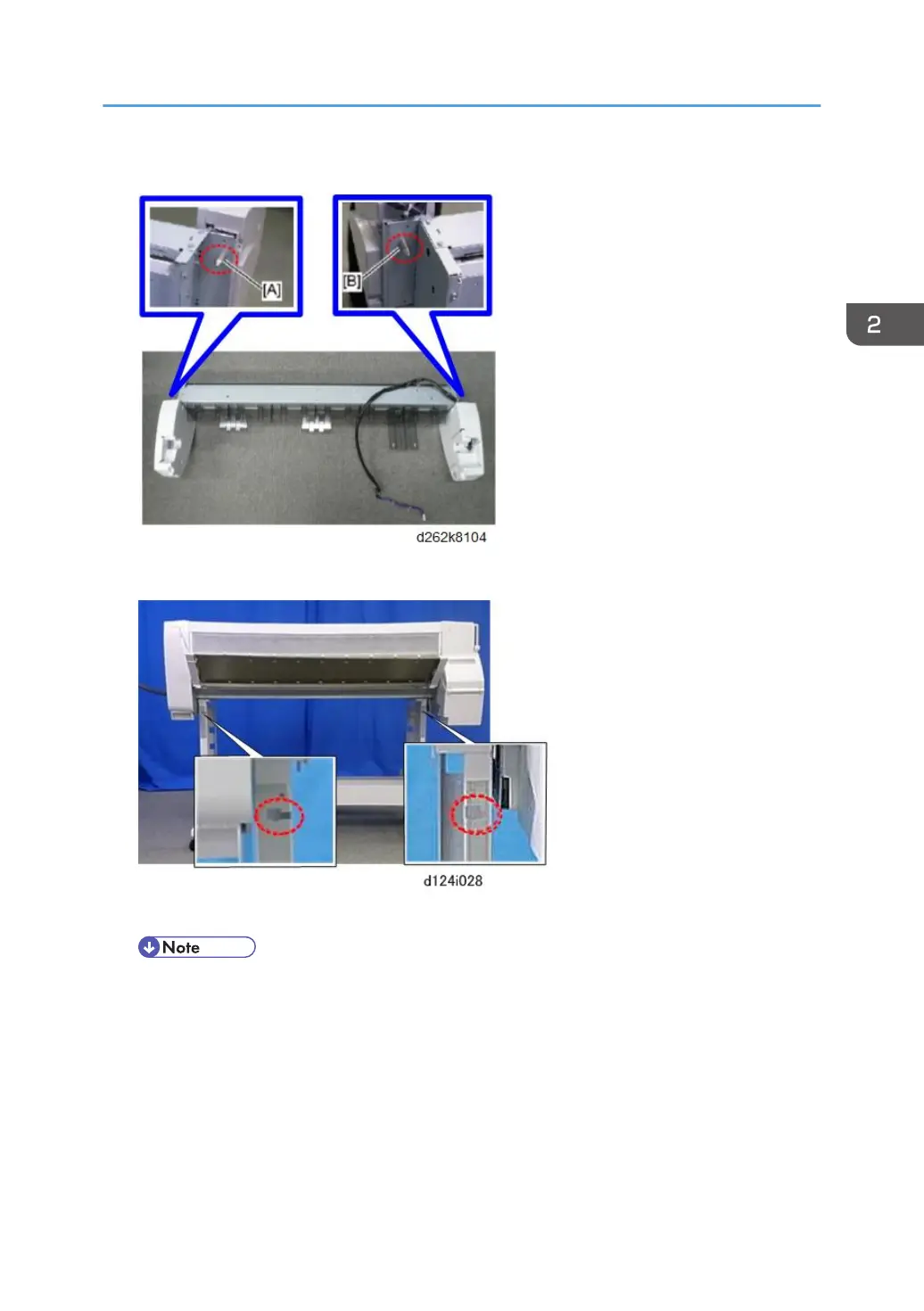

2. Locate the positioning pins on the left [A] and right [B] ends of the roll unit.
3. Locate the cut-outs in the left and right supports of the main unit stand.
4. To install the roll unit 1, place the harness backward.
• If the roll unit 1 is installed with the harness placing the front side, the harness cannot be
arranged to the backward.
