Ricoh MP CW2201 Service Manual

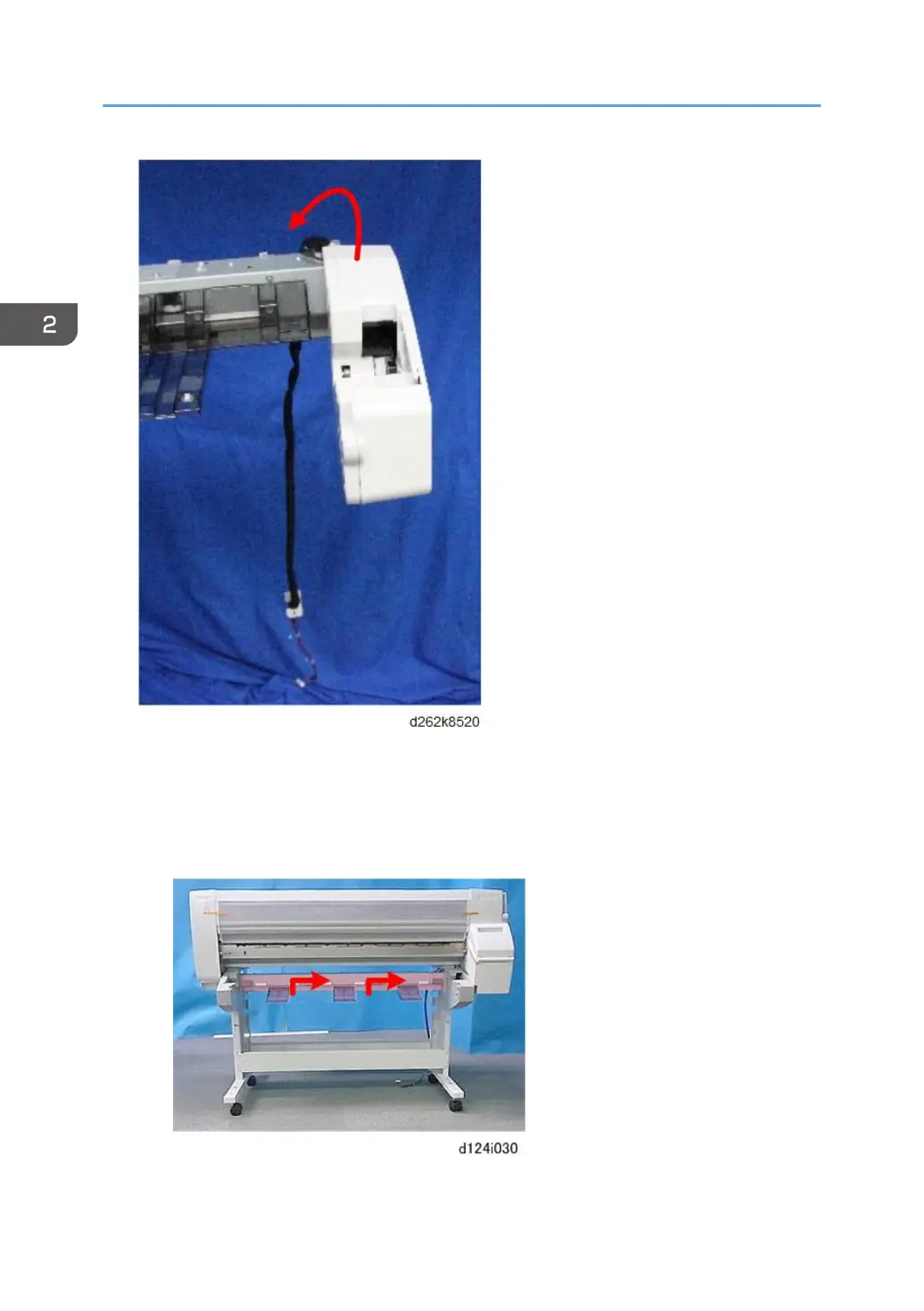

5. While holding the unit with both hands:
• Set the positioning pins on the left and right ends of the roll unit into the cut-outs in the supports
• Push the roll unit in.
• Slide it slightly to the right to lock the unit in place.
2. Installation
84

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
