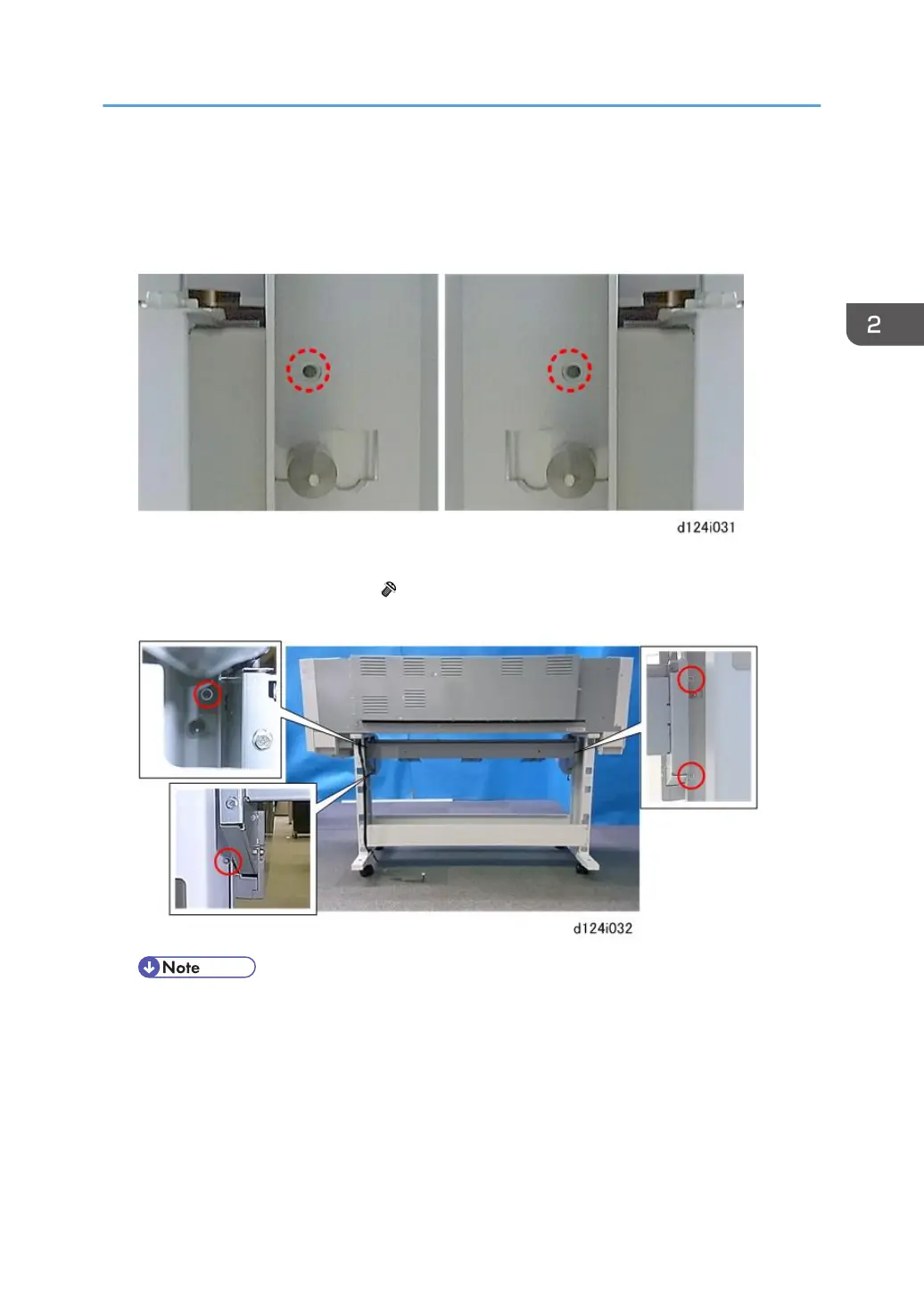

6. Behind the stand on both sides, make sure that the holes of the roll unit and the stand
frame are aligned.
7. Insert the tip of a long screwdriver (30 cm: 12 in.) through each pair of holes to make sure
that they are aligned.
8. Pull the harness over the top of the roll unit to the rear.
9. Fasten the roll unit to the stand ( x4 M3x8 with washer). (Be sure to use the screws with
the washers attached.)
• There are two pegs on each end of the paper transport guide.
Main Machine Installation
85
