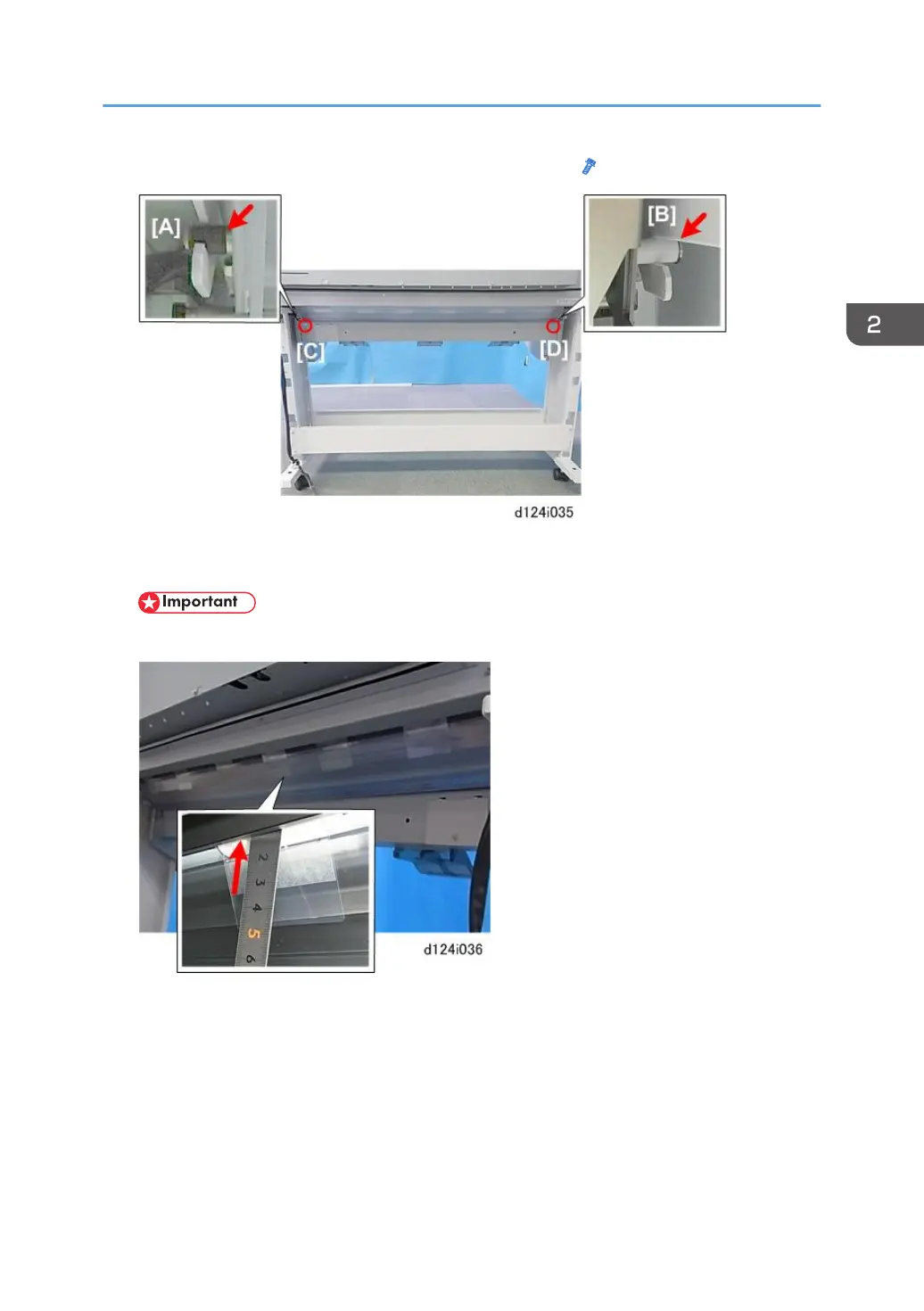

11. Fasten the guide to the frame on the right [C] and left [D] ( x2 M3x6).
12. Use a thin edge (like the end of a metal scale) to push the tongues of the guide film sheet
up and behind the plate. There are six film sheet tongues.
• Paper will not feed from the roll correctly if these film sheets are not pushed behind the plate.
Main Machine Installation
87
