boards.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
3-45
Boards for HiPath 3000
Central Boards
Switches and LEDs
LED statuses and their meanings

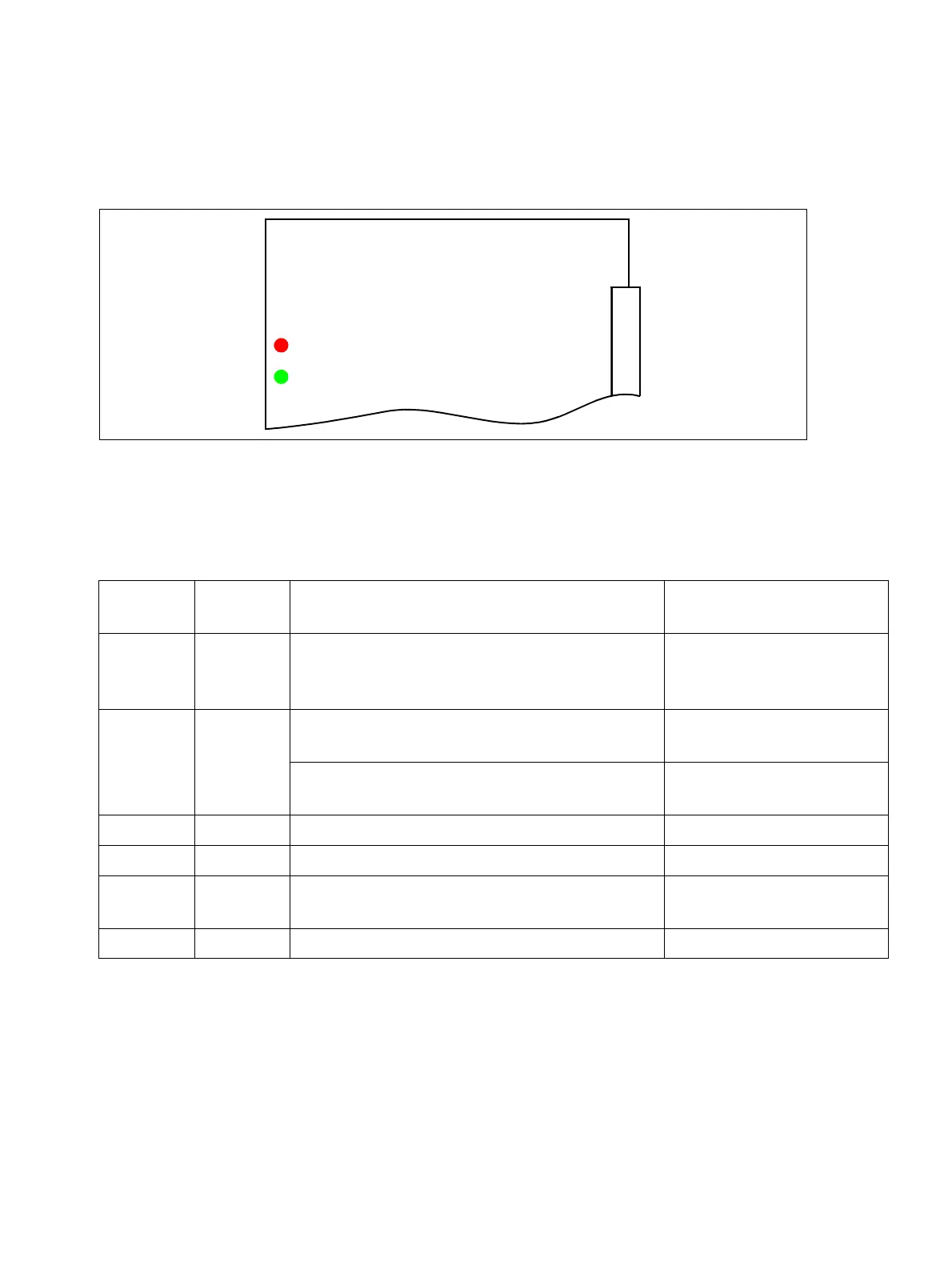

Figure 3-8 CR8N (S30810-Q2513-X100)
Table 3-22 CR8N - LED Statuses
Red LED Green
LED
Status Action
Off Off Board not receiving power or not plugged in
correctly.
Board is out of order.
Check plug contact on
board.
On Off Board is receiving power and board test is
in progress.
Wait
If the status does not change, the loadware
did not load correctly. Board is faulty.
Replace board.
Flashing Off Loadware is being loaded.
On On Board test unsuccessful, board is defective. Replace board.
Off On Board test completed successfully. Board is
OK (temporary transition).
Off Flashing Board operational.
H1 (red)
H2 (green)
LEDs
