Siemens HiPath 3000 - 4 SLA (Not for U.S.), 8 SLA, 16 SLA (Not for U.S.); Figure 3-132 4 SLA (Not for U.S.), 8 SLA - Interfaces

Boards for HiPath 3000
P31003-H3550-S403-4-7620, 02/05
3-312 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
boards.fm
Peripheral Boards
3.3.43 4SLA (Not for U.S.), 8SLA, 16SLA (Not for U.S.)
Introduction
The 4SLA, 8SLA, and 16SLA (Subscriber Line Analog) modules for analog T/R interfaces con-
nect HiPath 3550 and HiPath 3350 (wall housing) to conventional analog telephones and sup-
plementary equipment (such as group 3 fax machines and entrance telephone adapters).
Interfaces

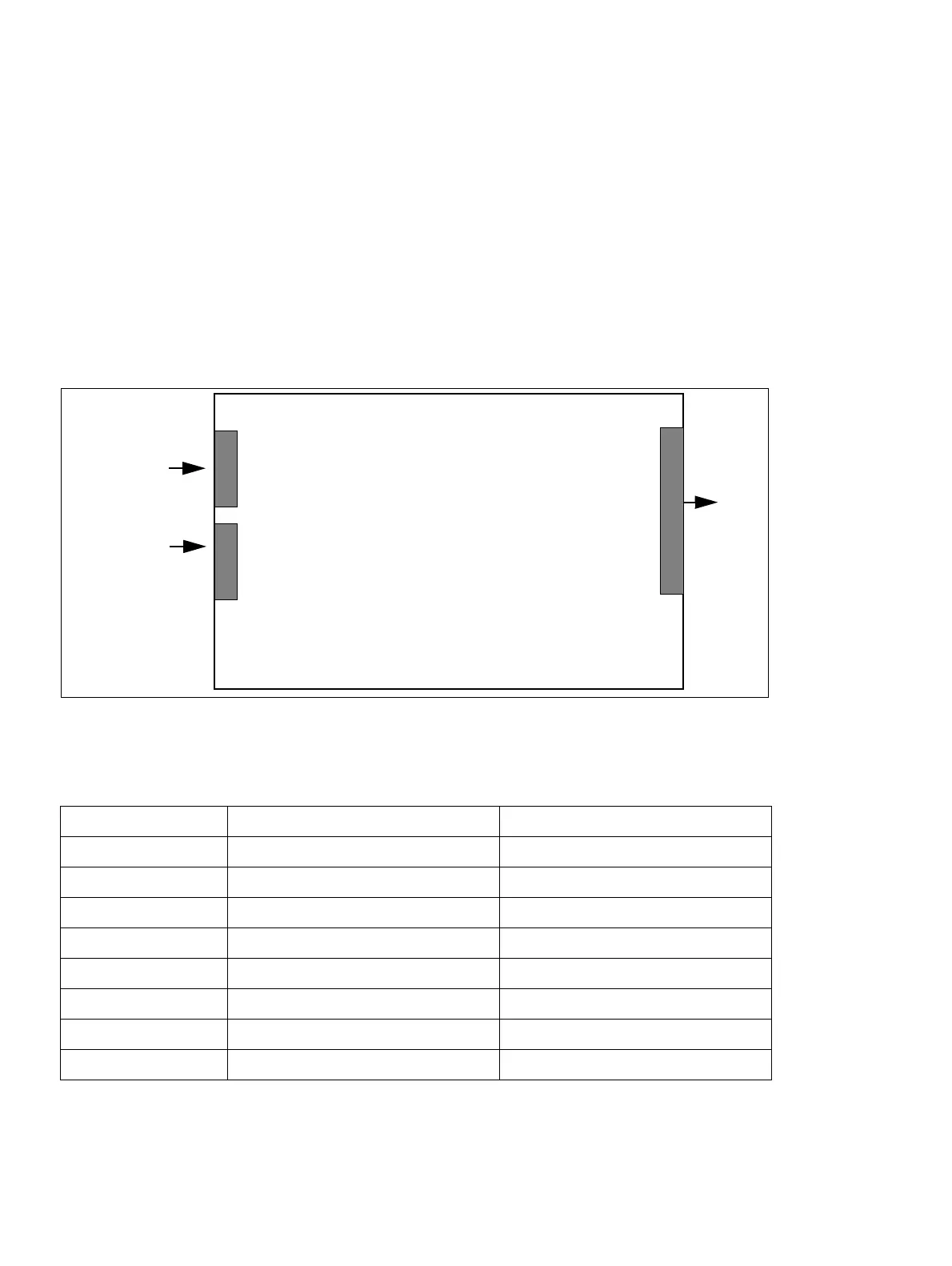

Figure 3-132 4SLA (Not for U.S.), 8SLA - Interfaces (S30810-Q2923-X200, -X100)
Table 3-150 4SLA (Not for U.S.), 8SLA Contact Assignments
Contact X2 (T/R ports 1 to 4) X3 (T/R ports 5 to 8)
1a 1 a 5
2b 1 b 5
3a 2 a 6
4b 2 b 6
5a 3 a 7
6b 3 b 7
7a 4 a 8
8b 4 b 8
T/R ports
1-4
Stns. 1 to 4
T/R ports
5-8
Stns. 5 to 8
(not with
4SLA)
X1
50
2
X2
X3
4/8SLA
1
8
1
8
To
CUP
CUC
