Siemens HiPath 3000 Service Manual

inst_h3.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
4-115
Installing HiPath 3000
Installing HiPath 3750, HiPath 3700
Two-Cabinet “8-Slot” System: Connection Cable (See Table 4-12)

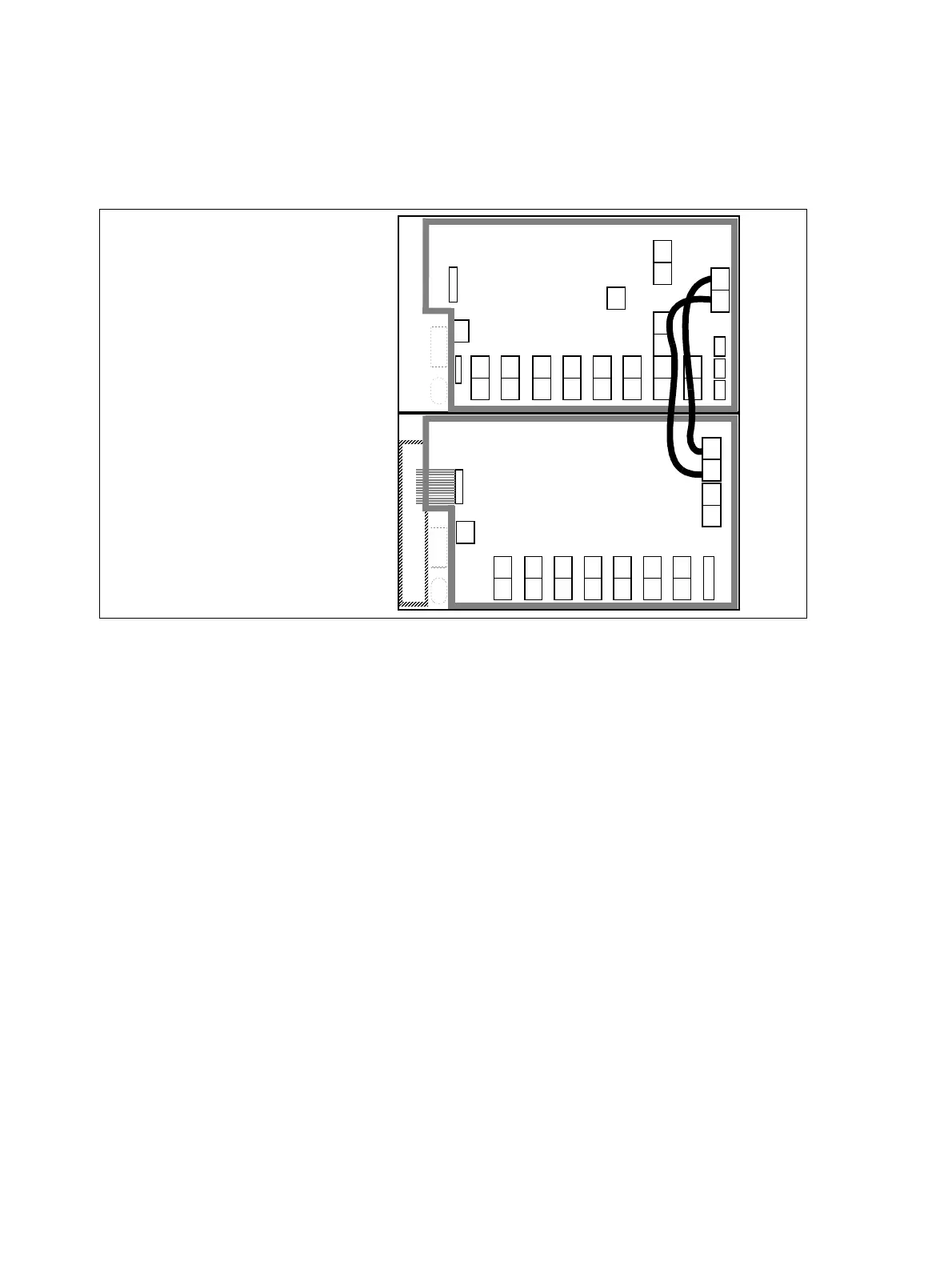

Figure 4-65 Two-Cabinet “8-Slot” System - Connection Cables between BC and EC1
EC1
BC
X13
X14
X11
X12
X13
X14
Cabinet part numbers
● BC = S30777-U757-X
● EC1 = S30777-U708-X100
Backplane part numbers
● BC = S30777-Q757-X
● EC1 = S30777-Q708-X100
Connection cable part num-
bers
● For connecting BC to EC1 =
S30267-Z178-A13
